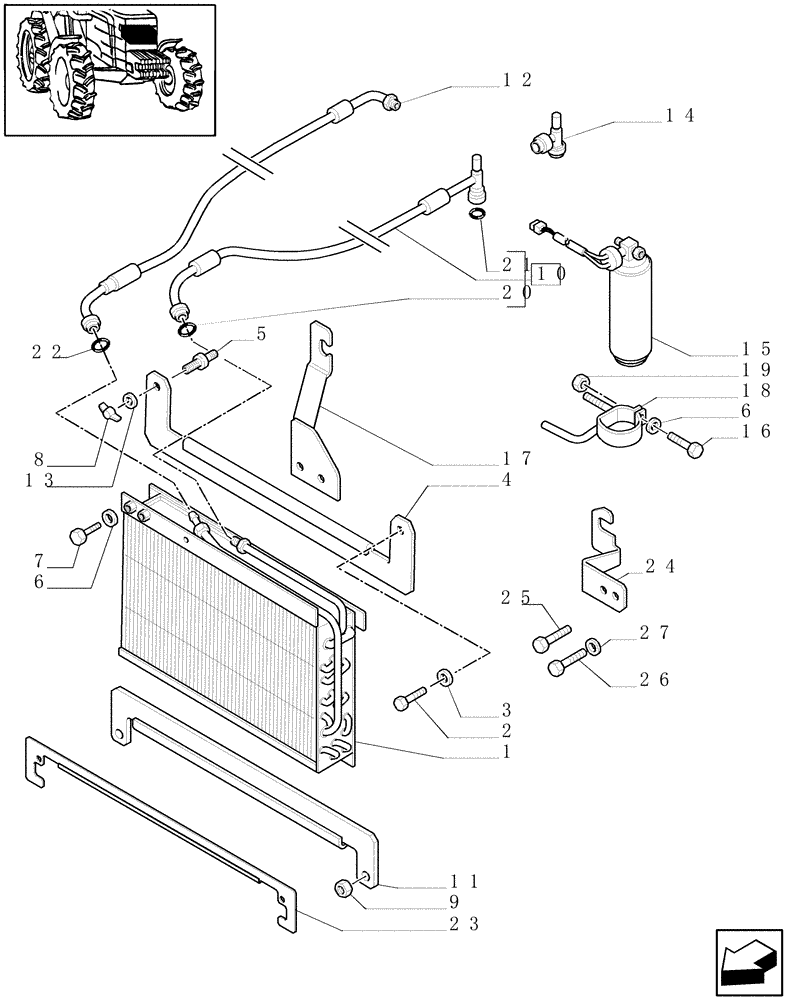

Запчасти Case IH JX95 (0.88.0/03[01]) - (VAR.641-958) AIR CONDITIONING UNIT - CONDENSER - D6355 - C6847 (01) - ENGINE

1

84215855

CONDENSER

1шт.

2

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

3

10569471

LOCK WASHER,Lock, 3/8"

M10

2шт.

4

84207894

BRACKET

Condenser, Upper

1шт.

5

5174191

SCREW

1шт.

6

12035670

LOCK WASHER

M6

4шт.

7

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

8

10102004

WING NUT

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

2шт.

10

5091890

HOSE

& Tube Assy, Serial Range: (Compressor-Condenser)

1шт.

11

84207895

BRACKET

1шт.

12

5095483

HOSE

& Tube Assy (Condenser to Dryer), Incl.22

1шт.

13

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

14

5092979

TEE

1шт.

15

5165615

RECEIVER-DRYER

1шт.

16

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

17

5095375

SUPPORT

Condenser Retainer

1шт.

Valid for VAR.958 only

1шт.

17

87715194

BRACKET

1шт.

Valid for VAR.641 only

1шт.

18

5093231

SUPPORT

1шт.

19

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

20

14453083

O-RING

1шт.

21

14453283

O-RING,14mm ID x 1.78mm Width

1шт.

22

14452883

O-RING,7.65mm ID x 1.78mm Width

1шт.

23

84139534

GUIDE

1шт.

Valid for VAR.641 only

1шт.

24

84188098

BRACKET

1шт.

Valid for VAR.641 only

1шт.

25

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

26

84188218

SCREW,M8 x 1.25 x 16mm, Cast Iron

1шт.

27

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

1шт.
