Запчасти Case IH JX95 (1.17.0[02A]) - RADIATOR - CAP AND BRACKET - D5834 (02) - ENGINE EQUIPMENT

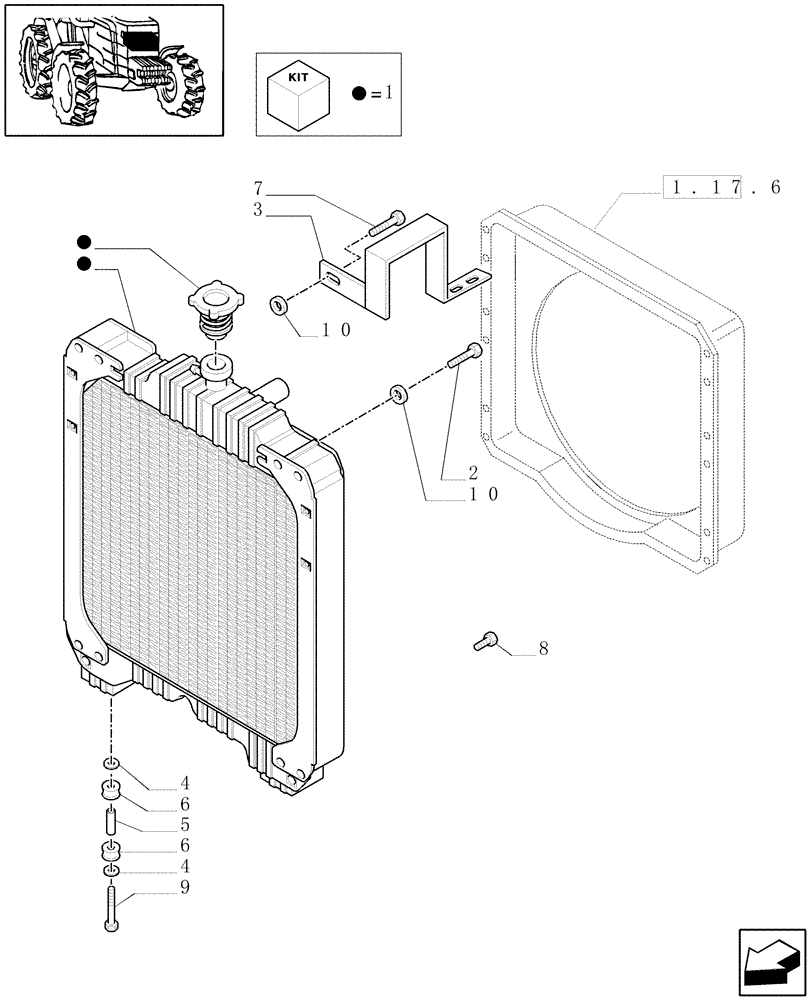

Схема запчастей Case IH JX95 - (1.17.0[02A]) - RADIATOR - CAP AND BRACKET - D5834 (02) - ENGINE EQUIPMENT
1.17.6
6
8
7
4
1
1
9
2
3
10
1
10
4
6
1
5

Артикул

Название

Примечание

Количество

1

5099122

RADIATOR

1шт.

See Also SRG 1.17.7 for Overheating Engine hit

1шт.

2

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

1шт.

3

87721174

SUPPORT

1шт.

4

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

5

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

6

5108225

RUBBER MOUNTING

4шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

15687401

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 25mm

2шт.

9

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

Выбрано товаров: 11
