(1.98.0/01[02]) - (VAR.007) NORTH AMERICA VERSION - DECALS

Запчасти Case IH JX95 (1.98.0/01[02]) - (VAR.007) NORTH AMERICA VERSION - DECALS (13) - DECALS

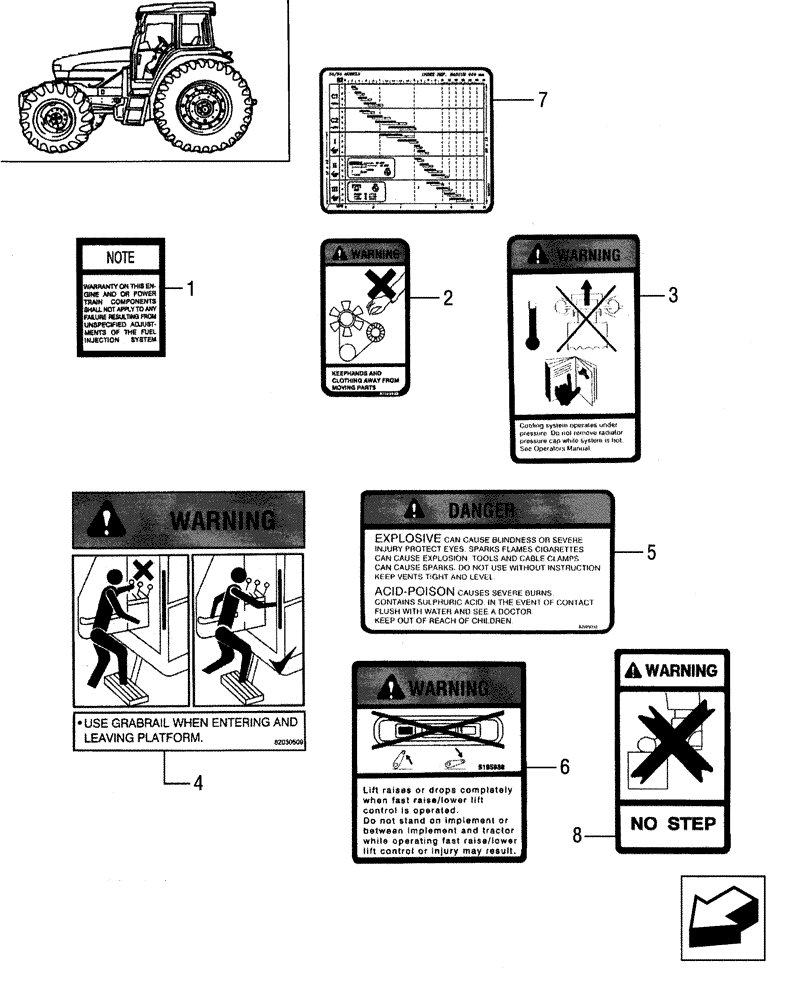

Схема запчастей Case IH JX95 - (1.98.0/01[02]) - (VAR.007) NORTH AMERICA VERSION - DECALS (13) - DECALS
4
1
2
3
6
5
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82029238

DECAL

WARNING, Fuel Injection Pump

1шт.

2

82029538

DECAL

WARNING, Fan

2шт.

3

82029421

WARNING DECAL

Radiator

2шт.

4

82030509

DECAL

WARNING, Instructions

2шт.

5

82029312

DECAL

DANGER, Battery Safety Instructions

1шт.

6

5195988

DECAL

WARNING, Lift-O-Matic, English

1шт.

7

5093393

DECAL

Speed

1шт.

8

82029420

DECAL

WARNING, No Step

1шт.
