(1.98.0/01[01]) - (VAR.007) NORTH AMERICA VERSION - DECALS

Запчасти Case IH JX95 (1.98.0/01[01]) - (VAR.007) NORTH AMERICA VERSION - DECALS (13) - DECALS

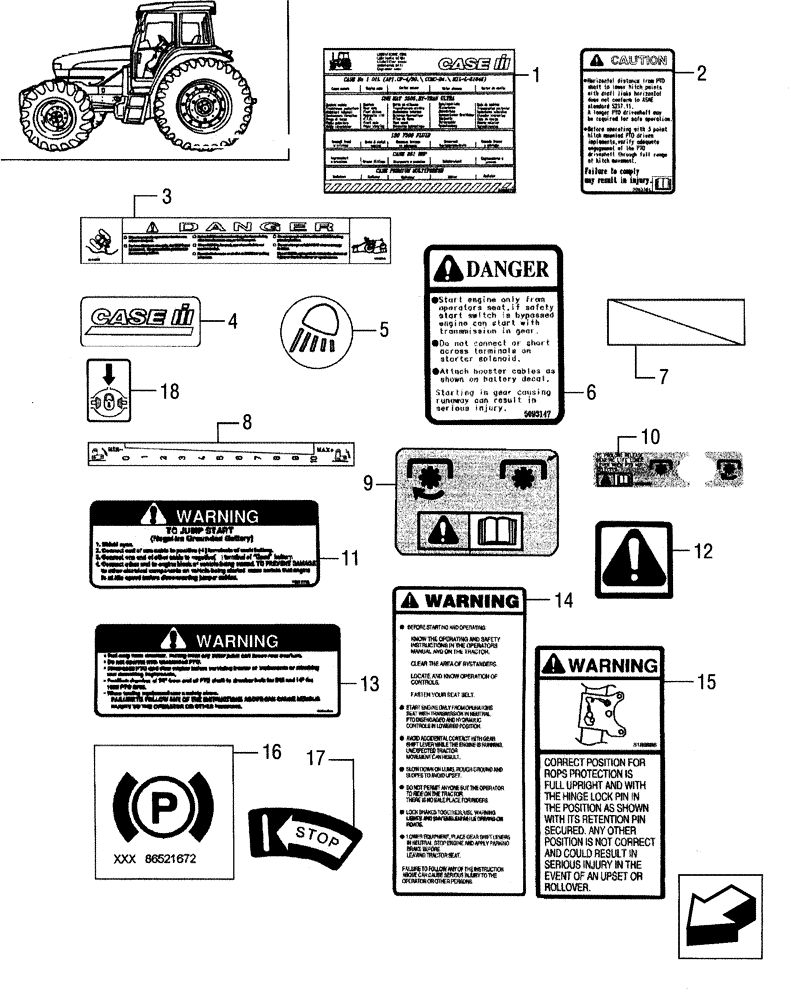

Схема запчастей Case IH JX95 - (1.98.0/01[01]) - (VAR.007) NORTH AMERICA VERSION - DECALS (13) - DECALS
3
8
14
11
13
16
2
4
10
15
5
12
9
7
6
18
1
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5094017

DECAL

Lubricating

1шт.

2

5093381

DECAL

WARNING, PTO

1шт.

3

86543805

DANGER DECAL

Foldable ROPS

2шт.

4

5093062

DECAL

Logo

4шт.

5

5093063

DECAL

WARNING, Working Light

1шт.

6

5093147

DECAL

DANGER, Starter

1шт.

7

5093065

DECAL

WARNING, Hand Throttle

1шт.

8

5093066

DECAL

WARNING, Hydraulic Lift Control

1шт.

9

5093067

DECAL

WARNING, Clutch Control Lever

1шт.

10

5093068

DECAL

WARNING, Main Clutch

1шт.

11

5180523

DECAL

WARNING, Jump Start

1шт.

12

83946774

DECAL

WARNING

2шт.

13

86532904

WARNING DECAL

Drawbar Pull

1шт.

14

5179865

WARNING DECAL

Operating Instructions

1шт.

15

5189886

DECAL

WARNING, ROPS

1шт.

16

86521672

DECAL

Parking Brake

1шт.

17

47133411

DECAL

Stop Engine

1шт.

18

83987788

DECAL

Differential Lock Operation

1шт.
