(1.91.1) - (VAR.007) NORTH AMERICA VERSION - SWITCHES

Запчасти Case IH JX95 (1.91.1) - (VAR.007) NORTH AMERICA VERSION - SWITCHES (10) - OPERATORS PLATFORM/CAB

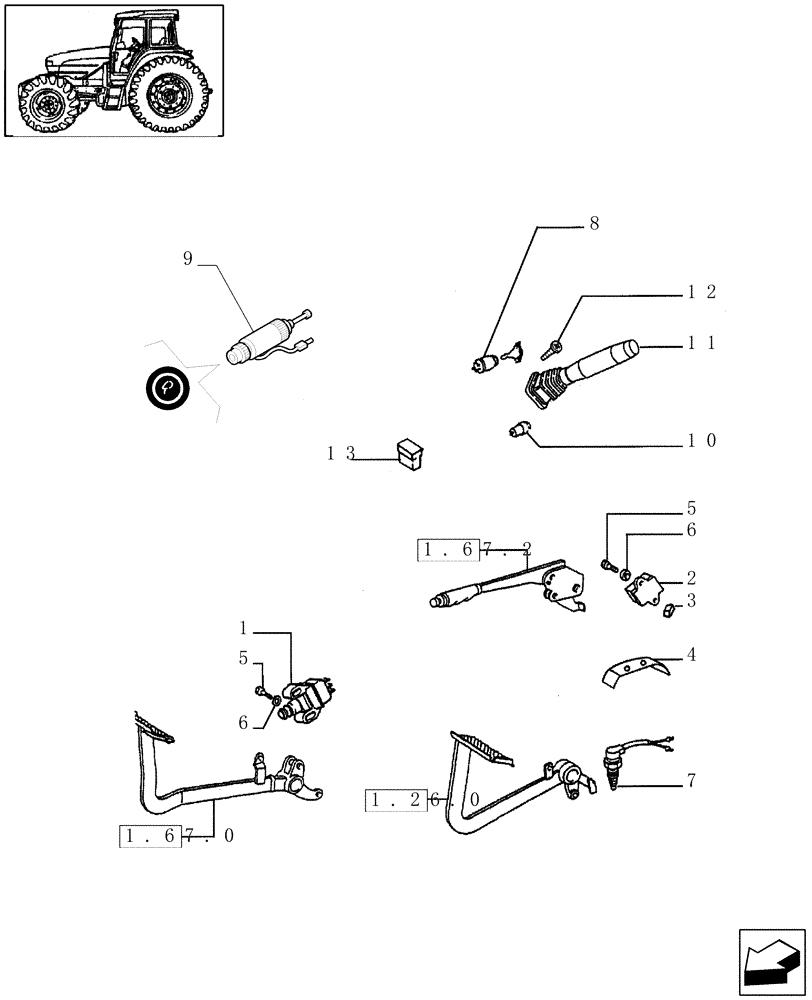

Схема запчастей Case IH JX95 - (1.91.1) - (VAR.007) NORTH AMERICA VERSION - SWITCHES (10) - OPERATORS PLATFORM/CAB
13
8
1
10
4
2
9
6
1.26.0
7
1.67.0
12
1.67.2
3
5
6
5
9
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5163618

SWITCH

F/Command Stop Lights

1шт.

2

5093385

PUSH BUTTON SWITCH

Hand Brake Warning

1шт.

3

5086015

CAP

1шт.

4

5093339

BRACKET

Hand Brake Switch Mounting Plate

1шт.

5

13272211

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

4шт.

6

10571379

LOCK WASHER,M4

4шт.

7

5140584

SWITCH

Start Engine Security

1шт.

8

5129862

IGNITION SWITCH

1шт.

9

87558498

CIGARETTE LIGHTER

1шт.

10

5122659

FLASHER SWITCH

Emergency, HAZARD

1шт.

11

5089705

SWITCH

Lights, Horn, Directional Signals

1шт.

12

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

4шт.

13

5093168

LIGHT SWITCH

Front Work

1шт.
