Запчасти Case IH JX95 (1.63.8[01]) - POWER STEERING - PUMP AND PIPES (04) - FRONT AXLE & STEERING

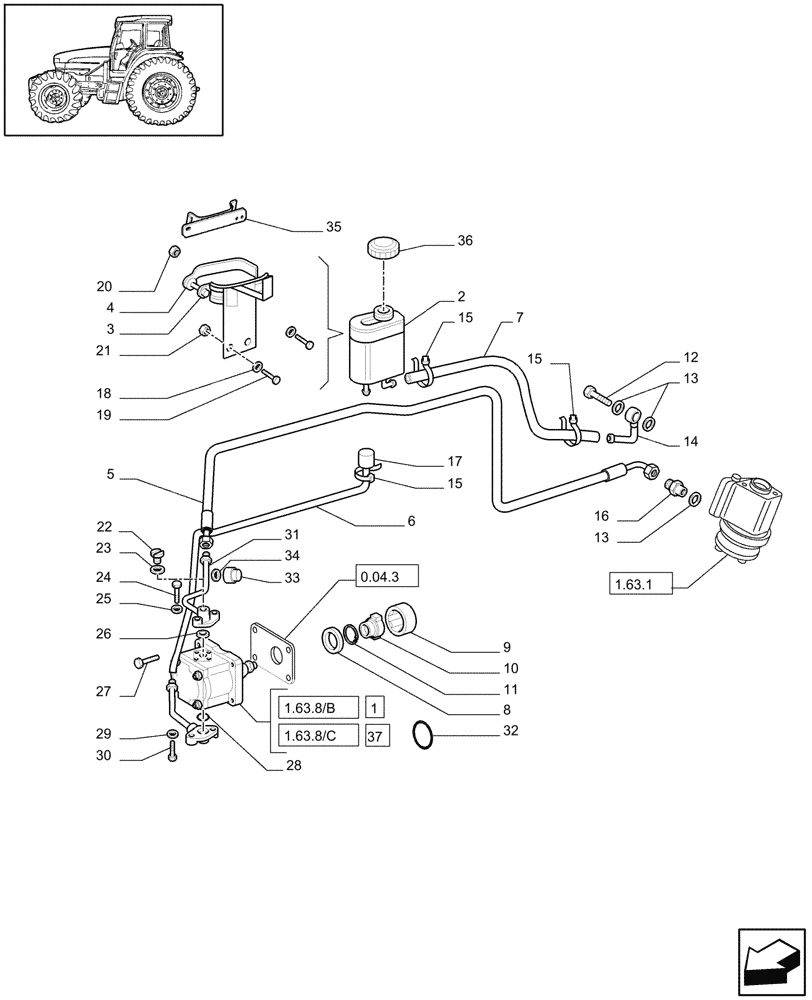

Схема запчастей Case IH JX95 - (1.63.8[01]) - POWER STEERING - PUMP AND PIPES (04) - FRONT AXLE & STEERING
1
1.63.1
2
25
27
5
13
9
21
6
19
15
26
34
1.63.8/b
23
15
3
22
7
10
36
18
33
1.63.8/c
37
35
11
32
17
31
8
16
29
20
28
15
4
30
13
24
0.04.3
12
14

Артикул

Название

Примечание

Количество

1

5094395

SERVOSTEERING

, Serial Range: -C6661

1шт.

1

84530166R

REMAN-HYD PUMP

JX80, JX90, Both TRACTOR - TIER 2, Serial Range: -C6661 (1/04-), Reman for New PN 5094395

1шт.

1

84530166C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

5087810

RESERVOIR, HYDRAULIC

1шт.

3

5088310

SUPPORT

JX85

1шт.

3

5094501

SUPPORT

JX75, Serial Range: -C5624

1шт.

3

5094527

SUPPORT

JX90, JX95

1шт.

3

5092627

SUPPORT

JX95

1шт.

4

5085974

BRACKET

1шт.

5

5091933

HOSE

JX80

1шт.

5

5091927

HOSE

JX70

1шт.

5

5097734

FLEXIBLE HOSE

JX70

1шт.

5

84425482

HOSE ASSY.,12.7mm ID x 1065mm L, SAE 100R2

JX90, JX95

1шт.

6

5097592

HYD TUBE

JX70, Serial Range: -C5624

1шт.

6

5097593

HYD TUBE

JX90, JX95

1шт.

6

5131786

RIGID TUBE

1шт.

6

5089717

PIPE

JX80

1шт.

6

87557777

PIPE

JX70, Start Serial: D5624

1шт.

7

44903912

HOSE,15.9mm ID x 620mm L

JX95

1шт.

7

44905429

HOSE,15.9mm ID x 360mm L

JX80

1шт.

7

5107289

HYDRAULIC HOSE,15.9mm ID x 470mm L

JX70, JX90, Serial Range: -C5624

1шт.

7

5126303

HYDRAULIC HOSE,16.00 mm ID x 750.00 mm

JX95

1шт.

7

44905401

HOSE,15.9mm ID x 560mm L

JX70, JX90, Start Serial: D5624

1шт.

8

5118568

CENTERING RING

1шт.

9

5118569

COUPLING

1шт.

10

5118570

HUB

1шт.

11

13398376

SNAP RING,M40, Int

1шт.

12

5112983

BANJO BOLT,1/2" GAS x 36mm L

1шт.

13

44019496

SEAL,21.2mm ID x 26mm OD x 2mm Thk

5шт.

14

5091174

PIPE

1шт.

14

5094789

TUBE

1шт.

15

5112712

COLLAR,M4.8 x 283

3шт.

16

5091175

FITTING

1шт.

17

5097428

HOSE

JX70

1шт.

17

5092989

HYDRAULIC HOSE,16.00 mm ID, 20.00 mm ID x 610.00 mm, SAE 100RG,SAE J517

JX80

1шт.

17

5093481

HYDRAULIC HOSE,16.00 mm ID, 20.00 mm ID x 725.00 mm, SAE 100RG, SAE J517

1шт.

17

5097871

HOSE

JX90, JX95

1шт.

17

5126925

HOSE,16.00 mm ID, 20.00 mm ID x 55.00 mm

1шт.

18

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

19

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

19

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

2шт.

20

15896211

NUT,M6, Cl 8

1шт.

21

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

22

11903111

PLUG,M10 x 1.25 x 11, Cl5.8

1шт.

23

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

1шт.

24

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

25

10571579

LOCK WASHER,M6

6шт.

26

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

27

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

4шт.

28

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

29

10569374

LOCK WASHER,M8

2шт.

30

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

31

5093956

PIPE

JX95

1шт.

31

5093958

PIPE

JX75

1шт.

31

5097594

HYD TUBE

JX70, JX90, JX95

1шт.

31

5091928

HOSE

1шт.

32

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

1шт.

33

5099414

PRESSURE SWITCH

1шт.

34

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

35

87549781

SUPPORT

JX75, Start Serial: D5624

1шт.

36

87749163

PLUG

1шт.

37

5179722

HYDRAULIC PUMP

, Start Serial: D6661

1шт.

37

84530166R

REMAN-HYD PUMP

JX80, JX90, Both TRACTOR - TIER 2, Start Serial: D6661 (1/04-), Reman for New PN 5179722

1шт.

37

84530166C

CORE-HYDRAULIC PUMP

Return Number

1шт.

Выбрано товаров: 64
