(1.40.5/15) - 4WD FRONT AXLE, STEERING CYLINDER, COMPONENTS - FOR HIGH CLEARENCE VERSION

Запчасти Case IH JX95 (1.40.5/15) - 4WD FRONT AXLE, STEERING CYLINDER, COMPONENTS - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING

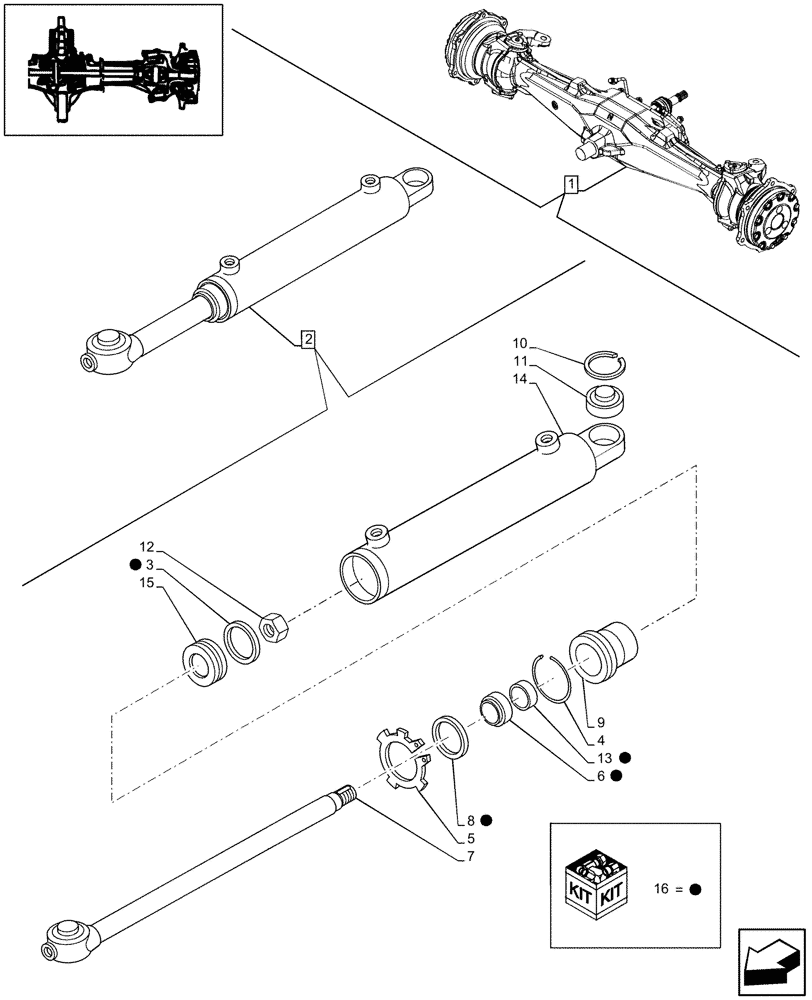

Схема запчастей Case IH JX95 - (1.40.5/15) - 4WD FRONT AXLE, STEERING CYLINDER, COMPONENTS - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING
14
8
16
1
3
16
12
10
6
13
5
15
16
4
11
16
7
16
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87307627

FRONT AXLE

4WD, ASSY, Incl 2 - 16

1шт.

2

5189895

STEERING CYLINDER,Double Acting, 22mm Rod, 202mm Stroke

ASSY, Incl 3 - 16

1шт.

3

5190909

SEAL

1шт.

4

5190912

LOCKING RING

1шт.

5

5190907

SNAP RING

1шт.

6

5190911

SEAL

1шт.

7

5190921

THREADED ROD

1шт.

8

5190589

RING

1шт.

9

5190590

SPOOL

1шт.

10

5190903

LOCKING RING

1шт.

11

5190901

BUSHING

1шт.

12

5190904

LOCK NUT

1шт.

13

5190549

SCRAPER RING

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

15

5190908

PISTON

1шт.

16

5190591

SEAL KIT

ASSY, Incl 3, 6, 8, 13

1шт.
