(1.40.5/13) - 4WD FRONT AXLE, STEERING CYLINDER HYD. LINE - FOR HIGH CLEARENCE VERSION

Запчасти Case IH JX95 (1.40.5/13) - 4WD FRONT AXLE, STEERING CYLINDER HYD. LINE - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING

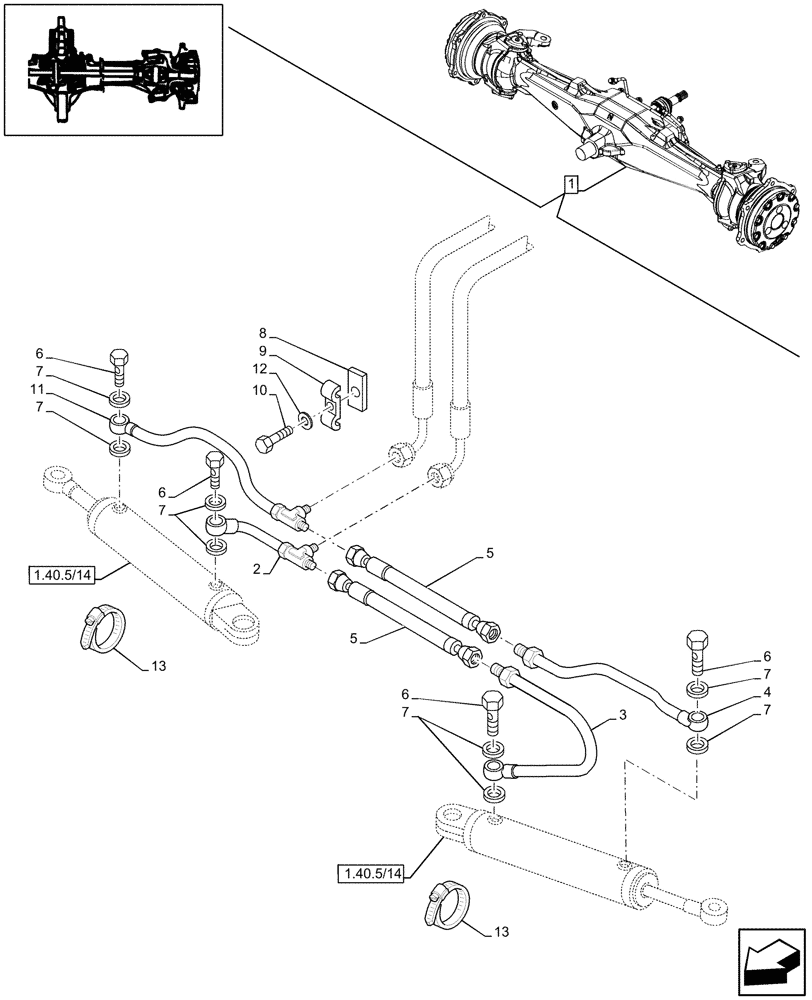

Схема запчастей Case IH JX95 - (1.40.5/13) - 4WD FRONT AXLE, STEERING CYLINDER HYD. LINE - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING
1.40.5/14
7
5
7
8
10
12
5
7
4
7
3
9
6
13
11
13
2
6
7
6
1
7
6
1.40.5/14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87307627

FRONT AXLE

4WD, ASSY, Incl 2 - 13

1шт.

2

5163740

TUBE

Steering Cylinder, LH

1шт.

3

5163738

HYD TUBE

Steering Cylinder, LH

1шт.

4

5139046

HYD TUBE

Steering Cylinder, LH

1шт.

5

5145419

HOSE,8mm ID x 540mm L, SAE 100R2

2шт.

6

10184311

BANJO BOLT,M14 x 1.5 x 27mm

4шт.

7

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

8шт.

8

5138294

SUPPORT

2шт.

9

4999554

CLAMP,2 Hoses

2шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

11

5139049

HYD TUBE

Steering Cylinder, RH

1шт.

12

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

13

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

2шт.
