(1.40.5/08) - 4WD FRONT AXLE, WHEEL HUB - FOR HIGH CLEARENCE VERSION

Запчасти Case IH JX95 (1.40.5/08) - 4WD FRONT AXLE, WHEEL HUB - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING

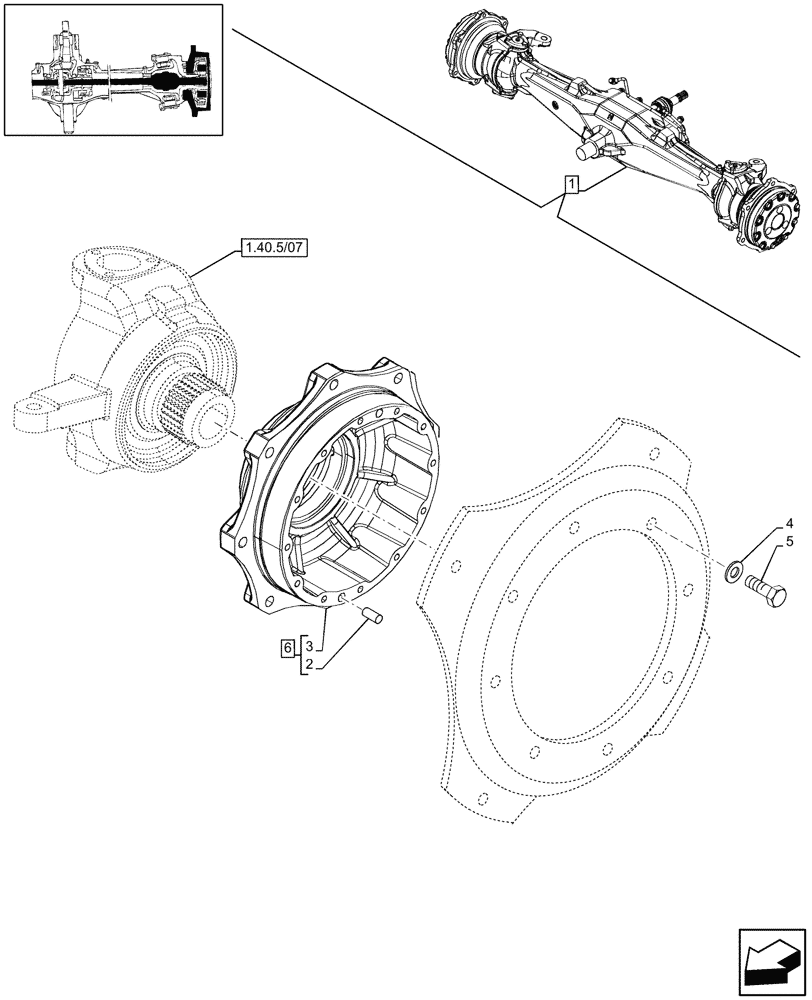

Схема запчастей Case IH JX95 - (1.40.5/08) - 4WD FRONT AXLE, WHEEL HUB - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING
1.40.5/07
1
5
2
6
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87307627

FRONT AXLE

4WD, ASSY, Incl 2, 3, 6

1шт.

2

4985063

DOWEL,12mm OD x 20mm L

4шт.

3

NSS

NOT SOLD SEPARAT

Front Hub, Driving Wheel, Incl in 6

2шт.

4

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

8шт.

5

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

8шт.

6

87341361

HUB

ASSY, Incl 2, 3

2шт.
