(1.40.5/06) - 4WD FRONT AXLE, DIFFERENTIAL GEAR, COMPONENTS - FOR HIGH CLEARENCE VERSION

Запчасти Case IH JX95 (1.40.5/06) - 4WD FRONT AXLE, DIFFERENTIAL GEAR, COMPONENTS - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING

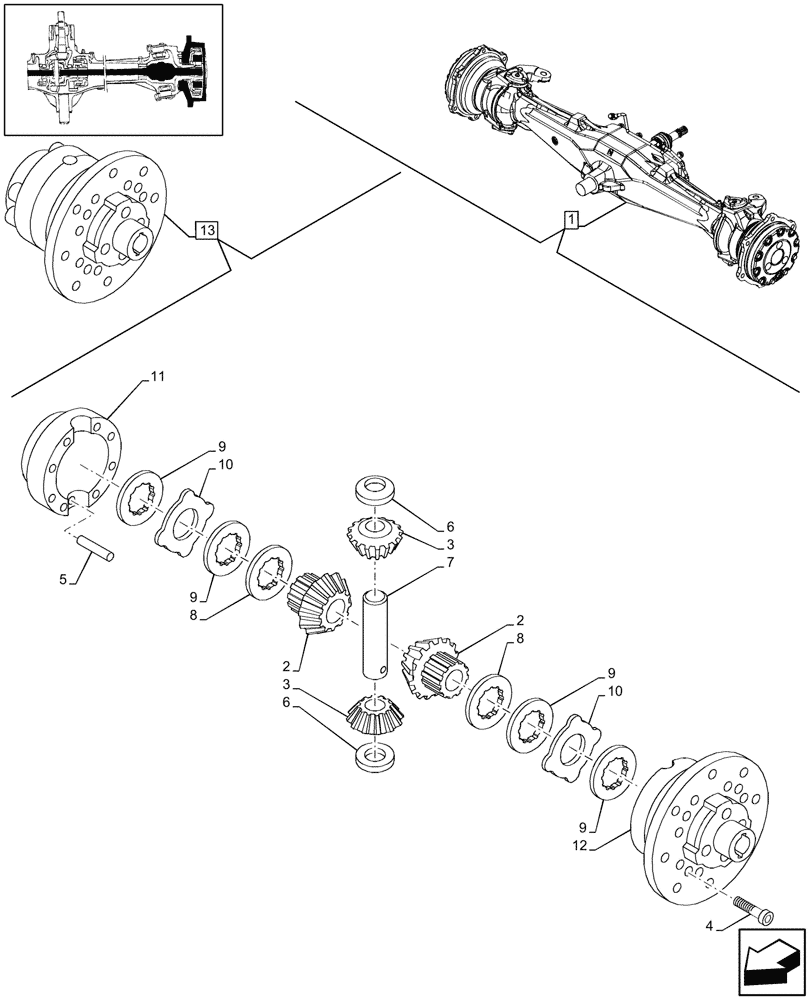

Схема запчастей Case IH JX95 - (1.40.5/06) - 4WD FRONT AXLE, DIFFERENTIAL GEAR, COMPONENTS - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING
3
3
10
9
9
12
10
5
2
6
7
11
13
2
9
4
6
9
8
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87307627

FRONT AXLE

4WD, ASSY, Incl 2 - 13

1шт.

2

9966355

PLANETARY GEAR

2шт.

3

9966353

IDLER PINION

2шт.

4

14421034

HEX SOC SCREW,M10 x 70mm, Cl 10.9

12шт.

5

9966356

ROLL PIN,7mm OD x 40mm L

1шт.

6

9966352

THRUST WASHER

2шт.

7

9966354

SHAFT

1шт.

8

9966310

PLATE

8шт.

9

9966308

PLATE

4шт.

10

9966309

DRIVEN PLATE

10шт.

11

NSS

NOT SOLD SEPARAT

Differential Housing, Male, Incl in 13

1шт.

12

NSS

NOT SOLD SEPARAT

Differential Housing, Female, Incl in 13

1шт.

13

5162583

DIFFERENTIAL GEAR

ASSY, Incl 2 - 12

1шт.
