Запчасти Case IH JX95 (1.40.5/02) - 4WD FRONT AXLE, HOUSING - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING

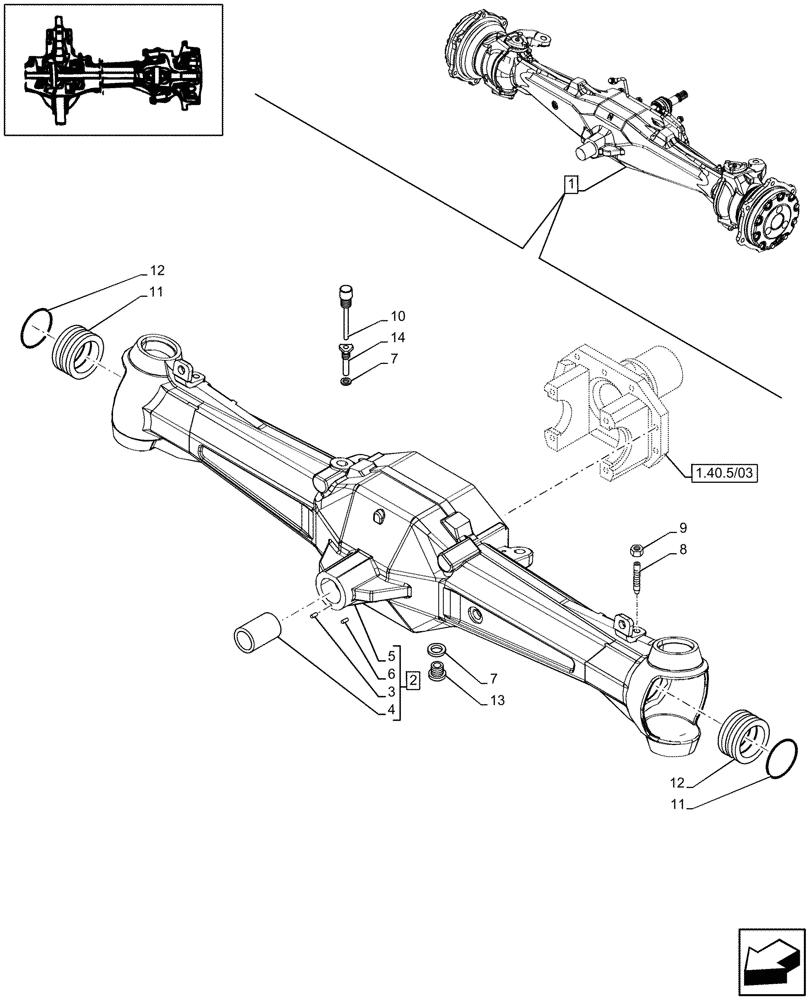

Схема запчастей Case IH JX95 - (1.40.5/02) - 4WD FRONT AXLE, HOUSING - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING
1.40.5/03
11
3
14
11
13
6
7
9
2
1
5
7
10
12
8
4
12

Артикул

Название

Примечание

Количество

1

87307627

FRONT AXLE

4WD, ASSY, Incl 2 - 14

1шт.

2

5144524

FRONT AXLE

ASSY, Incl 3 - 6

1шт.

3

4966244

PIN,5mm OD x 15mm L

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

NSS

NOT SOLD SEPARAT

Front Axle Housing, Incl in 2

1шт.

6

4988170

PIN,10mm OD x 20mm L

Dowel

2шт.

7

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

8

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

9

16101511

NUT,M12 x 1.25, Cl 8

2шт.

10

5101814

BREATHER

1шт.

11

87371268

BUSHING,62mm ID x 85mm OD x 43mm L

Axle Shaft

2шт.

12

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

2шт.

13

10305114

PLUG,M22 x 1.5 x 21

2шт.

14

5153744

BODY,M10 x 1

1шт.

Выбрано товаров: 14
