(1.40.5/01) - 4WD FRONT AXLE - FOR HIGH CLEARENCE VERSION

Запчасти Case IH JX95 (1.40.5/01) - 4WD FRONT AXLE - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING

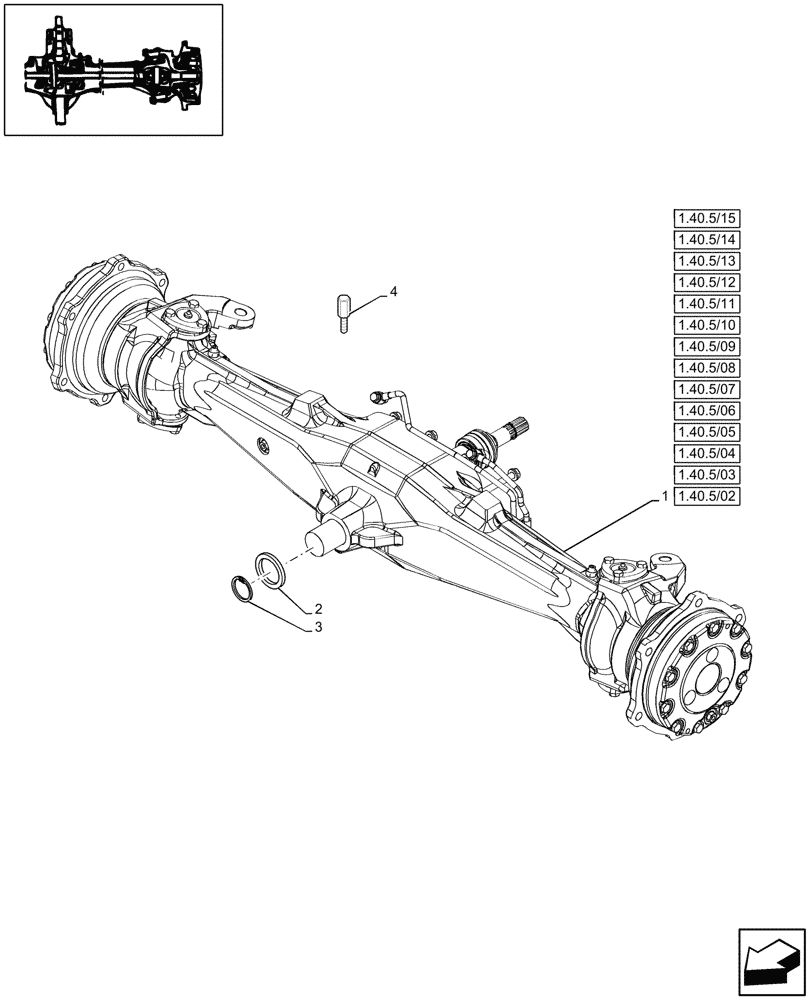

Схема запчастей Case IH JX95 - (1.40.5/01) - 4WD FRONT AXLE - FOR HIGH CLEARENCE VERSION (04) - FRONT AXLE & STEERING
1.40.5/04
2
1
3
4
1.40.5/15
1.40.5/13
1.40.5/14
1.40.5/12
1.40.5/11
1.40.5/03
1.40.5/05
1.40.5/09
1.40.5/06
1.40.5/10
1.40.5/08
1.40.5/07
1.40.5/02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87307627

FRONT AXLE

ASSY

1шт.

2

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

3

11067776

SNAP RING,M29, Ext

1шт.

4

5095283

ADJUSTMENT SCREW,M10 x 1.25 x 30mm, FE

2шт.
