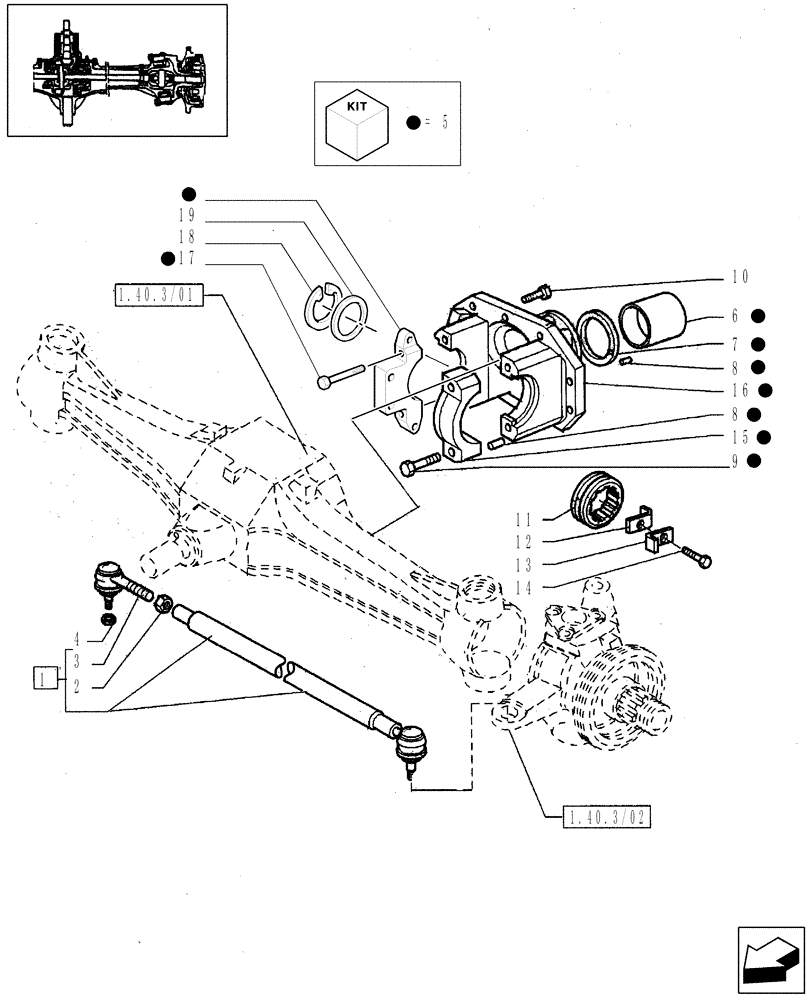

Запчасти Case IH JX95 (1.40.4/05) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER (4OKHPH) - SUPPORT; TIE-ROD (04) - FRONT AXLE & STEERING

1

5143152

TRACK ROD ASSY,M20 x 1 x 1515mm L

1шт.

2

587302

LOCK NUT,Hex, M20 x 1

20X1

1шт.

3

5109553

BALL JOINT

M16 x M20 Threads

1шт.

4

12575914

LOCK NUT

2шт.

5

5153613

SUPPORT

1шт.

6

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

7

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

8

4966244

PIN,5mm OD x 15mm L

3шт.

9

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

10

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

10шт.

11

4996750

RING NUT,M100 x 2

1шт.

12

4996751

PLATE

1шт.

13

562659

PLATE

1шт.

14

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

4996749

SUPPORT

1шт.

16

5153611

PLATE

1шт.

17

14276934

BOLT,Hex, M12 x 1.25 x 78mm, Cl 10.9

M12 x 1.25 x 78

2шт.

18

11062676

SNAP RING,M95, Int

1шт.

19

5141460

SHIM,83mm ID x 94.9mm OD x 0.9mm Thk

1шт.

19

5141461

SHIM,83mm ID x 94.9mm OD x 1mm Thk

1шт.

19

5141462

SHIM,83mm ID x 94.9mm OD x 1.1mm Thk

1шт.

19

5141463

SHIM,83mm ID x 94.9mm OD x 1.2mm Thk

1шт.

19

5141464

SHIM,83mm ID x 94.9mm OD x 1.3mm Thk

1шт.

19

5141465

SHIM,83mm ID x 94.9mm OD x 1.4mm Thk

1шт.

19

5141466

SHIM,83mm ID x 94.9mm OD x 1.5mm Thk

1шт.

19

5141467

SHIM,83.00mm ID x 94.50mm OD x 1.60mm T

1шт.

19

5141468

SHIM,83mm ID x 94.9mm OD x 1.7mm Thk

1шт.

19

5141469

SHIM,83mm ID x 94.9mm OD x 1.8mm Thk

1шт.

19

5141470

SHIM,83.00mm ID x 94.50mm OD x 1.90mm T

1шт.

19

5141471

SHIM,83.00mm ID x 94.50mm OD x 2.00mm T

1шт.
