(1.40.4/01) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER (4OKHPH) - BOX

Запчасти Case IH JX95 (1.40.4/01) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER (4OKHPH) - BOX (04) - FRONT AXLE & STEERING

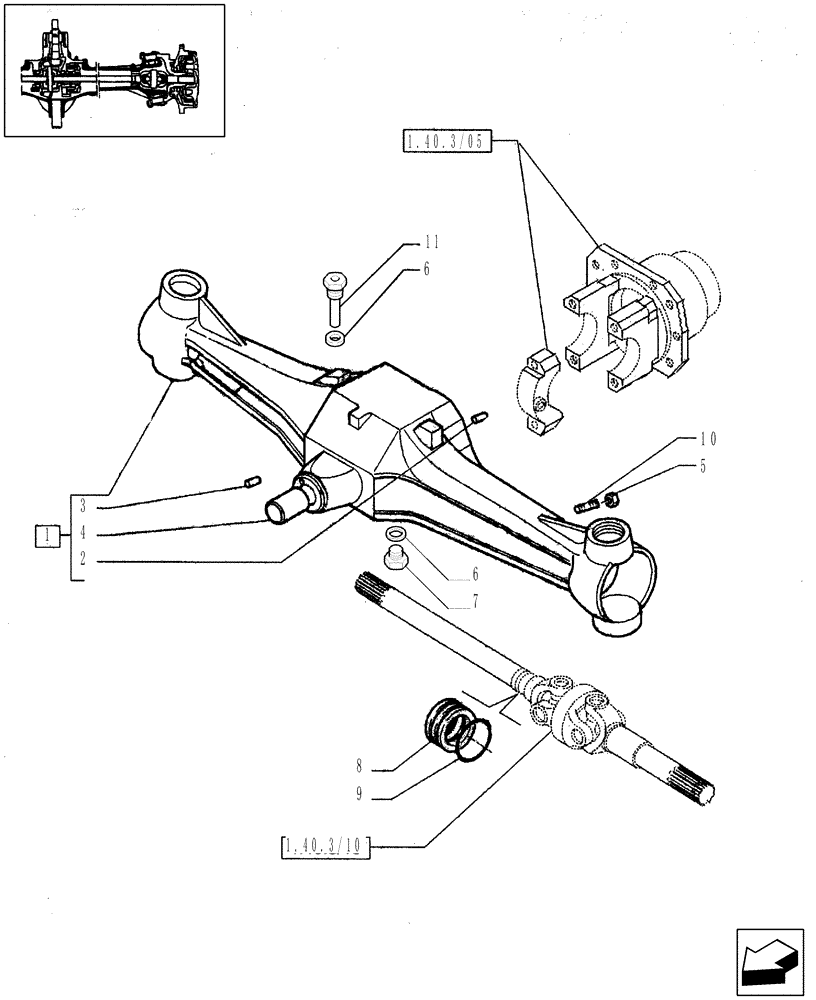

Схема запчастей Case IH JX95 - (1.40.4/01) - (VAR.540) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER (4OKHPH) - BOX (04) - FRONT AXLE & STEERING
1
9
6
3
8
4
7
6
1.40.3/05
5
1.40.3/10
2
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5156389

FRONT AXLE

1шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

14048814

NUT,M12 x 1.25

2шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

3шт.

7

10305171

PLUG,M22 x 1.5 x 21

2шт.

8

4996755

BUSHING

2шт.

9

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

80 x 2.62

2шт.

10

5100194

SCREW

M12X1.25X55

2шт.

11

5153744

BODY,M10 x 1

Breather

1шт.
