Запчасти Case IH JX95 (1.40.0/07[02]) - FRONT AXLE - DIFFERENTIAL AND RELEVANT PARTS (04) - FRONT AXLE & STEERING

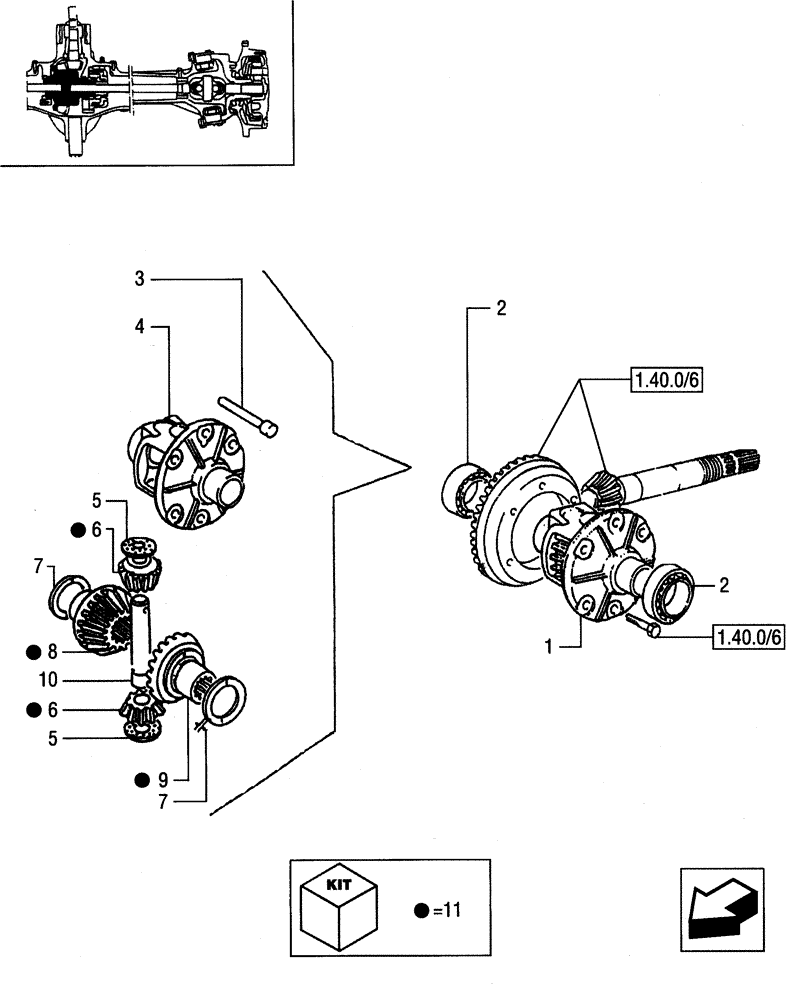

Схема запчастей Case IH JX95 - (1.40.0/07[02]) - FRONT AXLE - DIFFERENTIAL AND RELEVANT PARTS (04) - FRONT AXLE & STEERING
1.40.0/6
6
8
10
2
3
9
5
11
7
1.40.0/6
1
2
4
5
6
7

Артикул

Название

Примечание

Количество

1

5117219

HOUSING

1шт.

2

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

3

4987976

ROLL PIN,6.5mm OD x 62mm L

1шт.

4

4996747

HOUSING

1шт.

5

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

6

5103870

PINION,24mm ID, 13T

2шт.

7

4972381

SHIM,1.5mm Thk

SP.15

2шт.

7

4972382

SHIM,1.6mm Thk

SP.16

2шт.

7

5088328

SHIM,44.18mm ID x 66mm OD x 1.2mm Thk

1шт.

7

5088329

SHIM,44.18mm ID x 66mm OD x 1.3mm Thk

1шт.

7

5148940

THRUST WASHER,44mm ID x 66mm OD x 1.4mm Thk

1шт.

7

5148939

THRUST WASHER,44mm ID x 66mm OD x 1.5mm Thk

1шт.

7

5148936

THRUST WASHER,44mm ID x 66mm OD x 1.6mm Thk

1шт.

7

5148938

THRUST WASHER,44mm ID x 66mm OD x 1.7mm Thk

1шт.

7

5148937

THRUST WASHER,44mm ID x 66mm OD x 1.8mm Thk

1шт.

7

5088603

SHIM,1.9mm Thk

1шт.

7

5088604

SHIM,44.18mm ID x 66mm OD x 2mm Thk

1шт.

7

5087991

SHIM,2.1mm Thk

1шт.

7

5087992

SHIM,2.2mm Thk

1шт.

7

5087993

SHIM,2.3mm Thk

1шт.

7

5087994

SHIM,2.4mm Thk

1шт.

7

5087995

SHIM,2.5mm Thk

1шт.

8

5110716

PLANETARY GEAR

1шт.

9

5103868

PINION,12/22T

1шт.

10

4987974

PIN

1шт.

10

5148935

PIN,24mm OD x 144mm L

JX95

1шт.

11

1930125

KIT

1шт.

Выбрано товаров: 27
