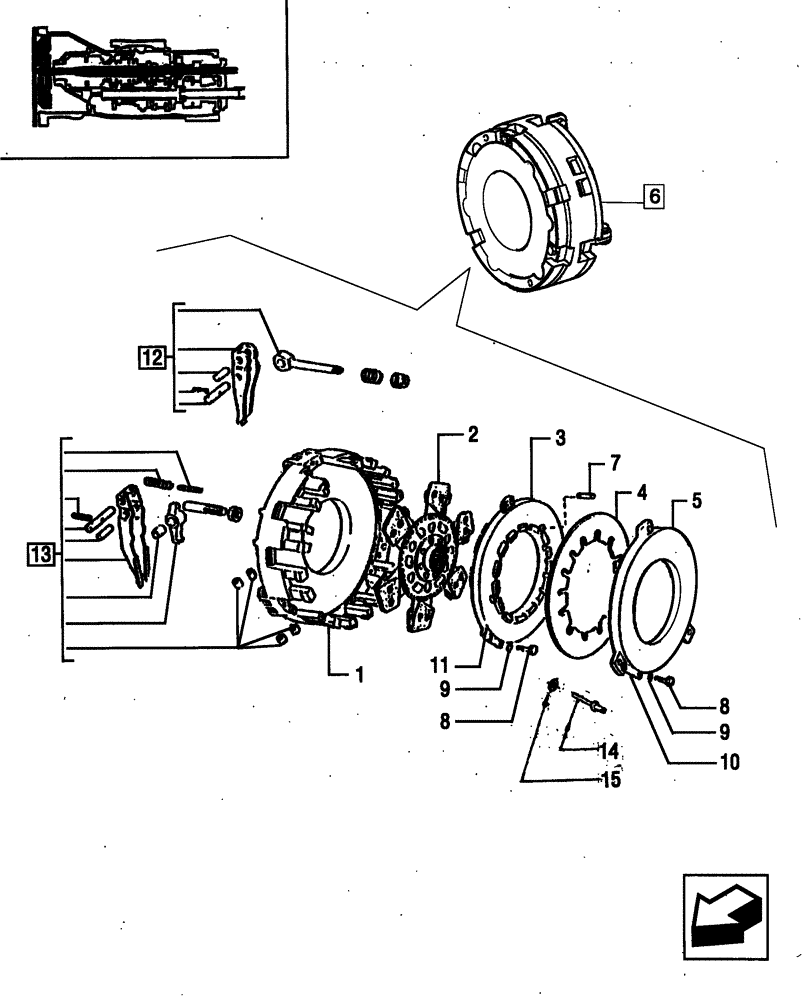

Запчасти Case IH JX95 (1.25.0/ B) - CLUTCH - RELEVANT PARTS (03) - TRANSMISSION

1

5092806

CLUTCH HOUSING

Diameter Centered

1шт.

1

5092803R

REMAN-CLUTCH PLATE

Reman for New PN 5092806

1шт.

1

5092803C

CORE-CLUTCH PLATE

Return Number

1шт.

1

5094128

CLUTCH HOUSING

Pin Centered

1шт.

2

5092805

CLUTCH PLATE,310mm OD

1шт.

2

5092805R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

2

5092805C

CORE-CLUTCH PLATE

Return Number

1шт.

3

25174666

CLUTCH PLATE

1шт.

4

25174656

CLUTCH PLATE

1шт.

5

25280501

CLUTCH PLATE

1шт.

6

5092803

CLUTCH & DISC ASSY,360mm OD

1шт.

6

5092803R

REMAN-CLUTCH PLATE

JX95 Tier 2

1шт.

6

5092803C

CORE-CLUTCH PLATE

Return Number

1шт.

7

25173704

PIN

3шт.

8

25286430

BOLT

3шт.

9

25274715

WASHER

3шт.

10

25221058

PLATE

3шт.

11

25220538

PLATE

3шт.

12

5093019

REPAIR KIT

3шт.

13

5093018

REPAIR KIT

3шт.

14

25276325

RIVET

3шт.

15

25276324

RIVET

3шт.
