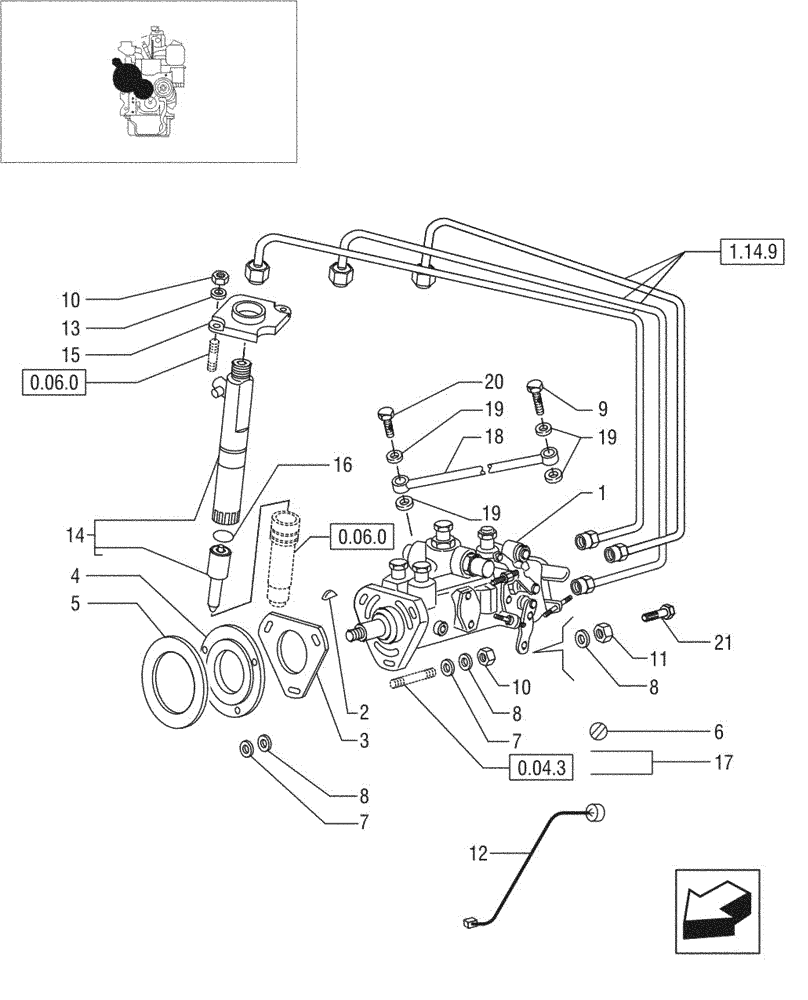

Запчасти Case IH JX95 (0.14.0/04[03]) - INJECTION EQUIPMENT - INJECTOR - TIER 1 ENGINE (01) - ENGINE

1

5096739

FUEL INJECTION PUMP

1шт.

2

10205820

WOODRUFF KEY,4mm x 6.50mm x 15.72mm

1шт.

3

4852642

GASKET

1шт.

4

4607646

SPACER,50mm ID x 116.05mm OD x 6mm L

1шт.

5

98400782

GASKET,0.8mm Thk

1шт.

6

747226

FASTENER

1шт.

7

12647101

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

8

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

9

5096757

BANJO BOLT,M8 x 1 x 19mm, Cl 5.8

1шт.

10

16100821

NUT,M8, Cl 10

8шт.

11

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

2шт.

12

504088077

WIRE HARNESS

1шт.

13

771326

WASHER,8.40mm ID

D=8 mm

8шт.

14

5090725

FUEL SYSTEM INJECTOR

4шт.

14

5090725R

REMAN-INJECT NOZZLE

JX95 Straddle Mount w/Tier 1 Engine

4шт.

14

5090725C

CORE-NOZZLE, INJECT

Return Number

4шт.

15

4780612

BRACKET

4шт.

16

14453589

O-RING,Cl II-18, 70 Duro, .739" ID x .070" Thk

4шт.

17

4699125

WIRE ROPE

WIRE

1шт.

18

5097061

TUBE

1шт.

19

14330260

SEALING WASHER,M8.2 x 12 x 1

4шт.

20

5096756

BANJO BOLT

1шт.

21

5097191

SCREW

1шт.
