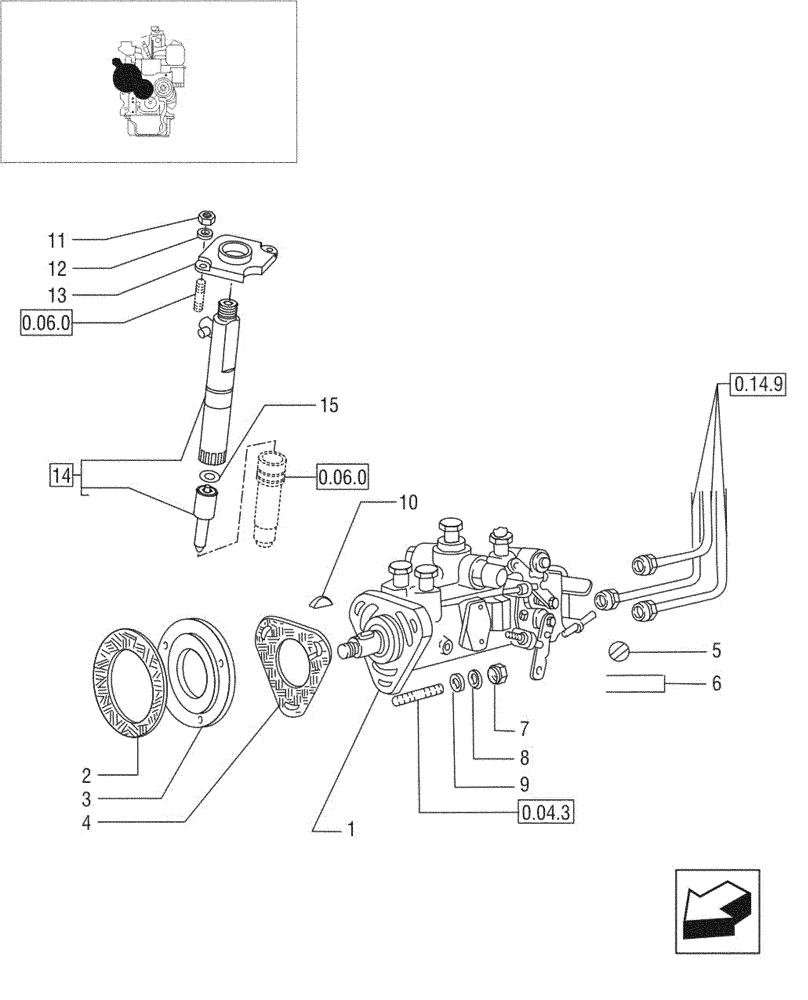

Запчасти Case IH JX95 (0.14.0/04[01]) - INJECTION EQUIPMENT - INJECTOR - TIER 1 ENGINE (01) - ENGINE

1

5090722

FUEL INJECTION PUMP

JX80

1шт.

1

5090724

FUEL INJECTION PUMP

JX60

1шт.

1

5095919

FUEL INJECTION PUMP

JX70

1шт.

1

5095921

FUEL INJECTION PUMP

JX90

1шт.

2

98400782

GASKET,0.8mm Thk

1шт.

3

4607646

SPACER,50mm ID x 116.05mm OD x 6mm L

1шт.

4

4852642

GASKET

1шт.

5

747226

FASTENER

1шт.

6

4699125

WIRE ROPE

WIRE

1шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

8

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

9

12647101

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

10

10205820

WOODRUFF KEY,4mm x 6.50mm x 15.72mm

1шт.

11

16100821

NUT,M8, Cl 10

1шт.

12

771326

WASHER,8.40mm ID

D=8 mm

1шт.

13

4780612

BRACKET

1шт.

14

5090725

FUEL SYSTEM INJECTOR

1шт.

14

5090725R

REMAN-INJECT NOZZLE

JX95 Straddle Mount w/Tier 1 Engine

1шт.

14

5090725C

CORE-NOZZLE, INJECT

Return Number

1шт.

14

5090726

FUEL SYSTEM INJECTOR

JX60-JX80

1шт.

15

14453589

O-RING,Cl II-18, 70 Duro, .739" ID x .070" Thk

1шт.
