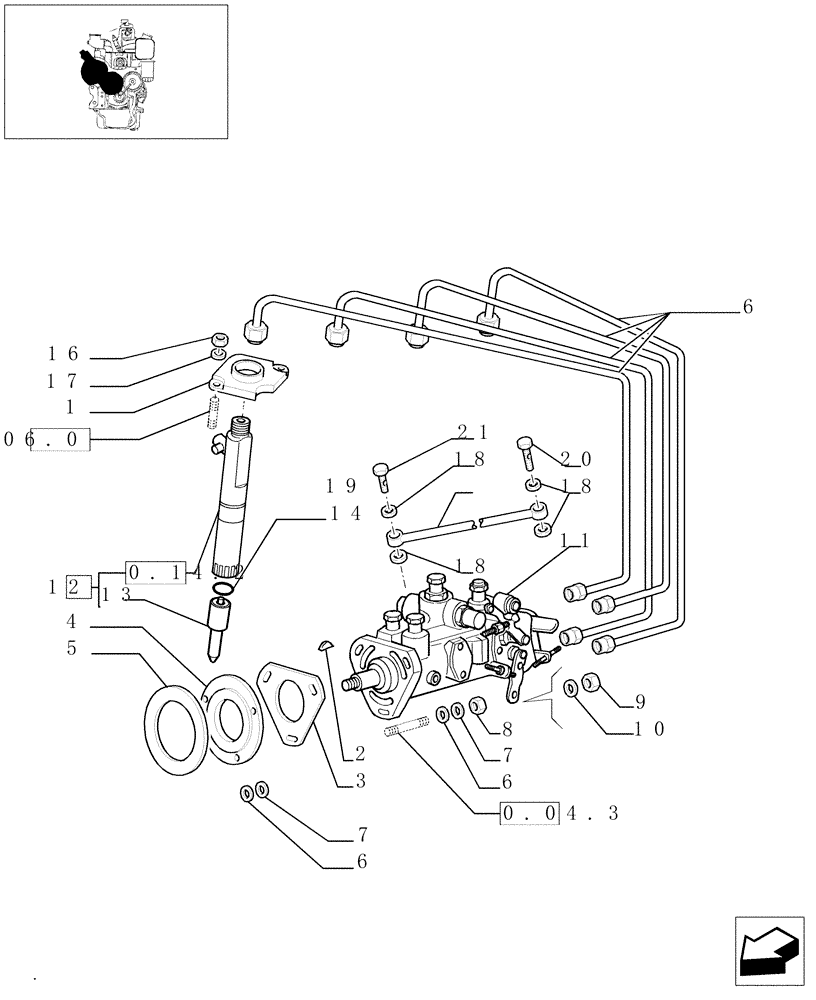

Запчасти Case IH JX95 (0.14.0/03[01]) - FUEL SYSTEM - INJECTION PUMP - TIER 2 ENGINE (01) - ENGINE

1

4780612

BRACKET

4шт.

2

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

3

4851923

GASKET,0.8mm Thk

1шт.

4

4607646

SPACER,50mm ID x 116.05mm OD x 6mm L

1шт.

5

98400782

GASKET,0.8mm Thk

1шт.

6

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

8

43362

NUT,M8 x 1.25, Cl 10

3шт.

9

17037721

NUT

M5

1шт.

10

11199271

LOCK WASHER

M5

1шт.

11

504042718

FUEL INJECTION PUMP

1шт.

11

504042718R

REMAN-INJECTION PUMP

Remanufactured Fuel Injection Pump

1шт.

11

504042718C

CORE-INJECTION PUMP

Return Number

1шт.

A77753

SOLENOID

Shutoff Solenoid

1шт.

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

1шт.

12

500307714

FUEL SYSTEM INJECTOR

4шт.

12

500307714R

REMAN-INJECT NOZZLE

4шт.

12

500307714C

CORE-NOZZLE, INJECT

Return Number

4шт.

13

99469341

NOZZLE

Assy

4шт.

14

80066297

O-RING

D=8 x 1 x 26 mm

4шт.

15

99449006

HOSE KIT

1шт.

16

17042531

NUT

D=8 mm

8шт.

17

771326

WASHER,8.40mm ID

D=8 mm

8шт.

18

2852057

SEALING WASHER,M8 x 12 x 1 Thk

4шт.

19

99449533

RIGID TUBE

1шт.

20

4833907

BANJO BOLT

1шт.

21

4753761

BANJO BOLT

1шт.
