Запчасти Case IH JX95 (0.08.2) - PISTON ASSEMBLY - TIER 2 ENGINE (01) - ENGINE

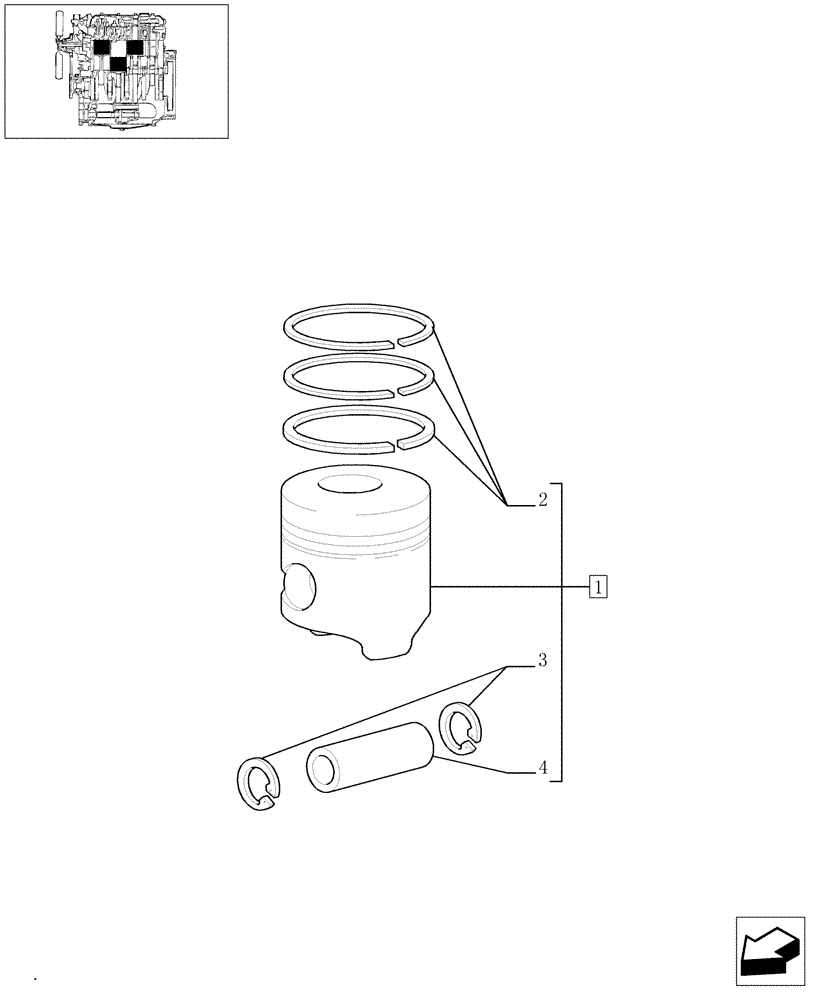

Схема запчастей Case IH JX95 - (0.08.2) - PISTON ASSEMBLY - TIER 2 ENGINE (01) - ENGINE
1
3
2
4

Артикул

Название

Примечание

Количество

1

1931202

PISTON & RINGS KIT

JX60 - JX80

1шт.

Q.TY= 3 FOR JX60, Q.TY = 4 FOR JX80

1шт.

1

1931203

PISTON & RINGS KIT

JX60 - JX80

1шт.

Q.TY= 3 FOR JX60, Q.TY = 4 FOR JX80

1шт.

1

1931206

PISTON & RINGS KIT

JX70 - JX90 - JX95

1шт.

Q.TY= 3 FOR JX70, Q.TY = 4 FOR JX90, JX95

1шт.

1

1931207

PISTON & RINGS KIT

JX70 - JX90 - JX95

1шт.

Q.TY= 3 FOR JX70, Q.TY = 4 FOR JX90, JX95

1шт.

2

1931200

SET OF RINGS

JX60 - JX80

1шт.

Q.TY= 3 FOR JX60, Q.TY = 4 FOR JX80

1шт.

2

1931201

SET, PISTON RINGS

JX60 - JX80

1шт.

Q.TY= 3 FOR JX60, Q.TY = 4 FOR JX80

1шт.

2

1931204

SET OF RINGS,Standard Size

JX70 - JX90 - JX95

1шт.

Q.TY= 3 FOR JX70, Q.TY = 4 FOR JX90, JX95

1шт.

2

1931205

SET, PISTON RINGS,Oversize +0.6

JX70 - JX90 - JX95

1шт.

Q.TY= 3 FOR JX70, Q.TY = 4 FOR JX90, JX95

1шт.

3

4770452

SNAP RING,38mm ID

1шт.

4

4801851

PISTON PIN

JX60 - JX80

1шт.

Q.TY= 3 FOR JX60, Q.TY = 4 FOR JX80

1шт.

4

4802351

PISTON PIN

JX70 - JX90 - JX95

1шт.

Q.TY= 3 FOR JX70, Q.TY = 4 FOR JX90, JX95

1шт.

Выбрано товаров: 21
