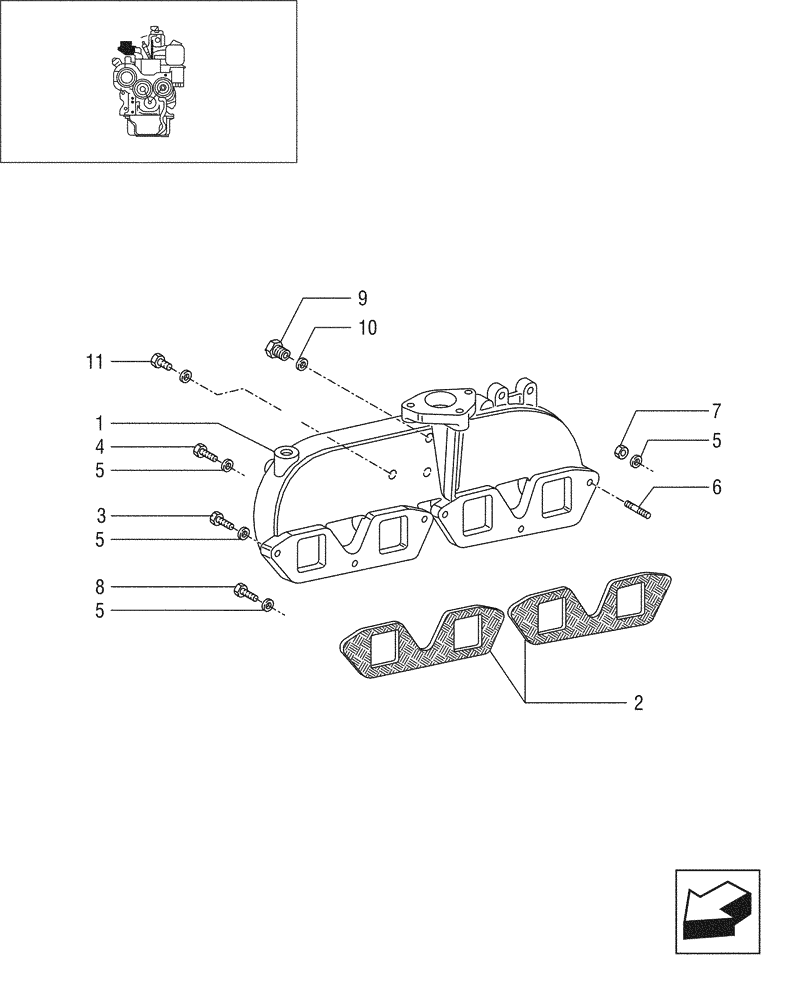

Запчасти Case IH JX95 (0.07.1/04[04]) - INTAKE MANIFOLD - TIER 1 ENGINE (01) - ENGINE

2

4851921

GASKET,0.8mm Thk

2шт.

3

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

4шт.

4

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

5

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

7шт.

6

13543321

STUD

M8 x 16 x 20

1шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

8

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

1шт.

9

4577310

PLUG,1/2", Gas

1/2"

1шт.

10

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

1шт.

11

4798845

BOLT,M8 x 1.25 x 16.50mm

M8 x 1.25 x 16.5

1шт.
