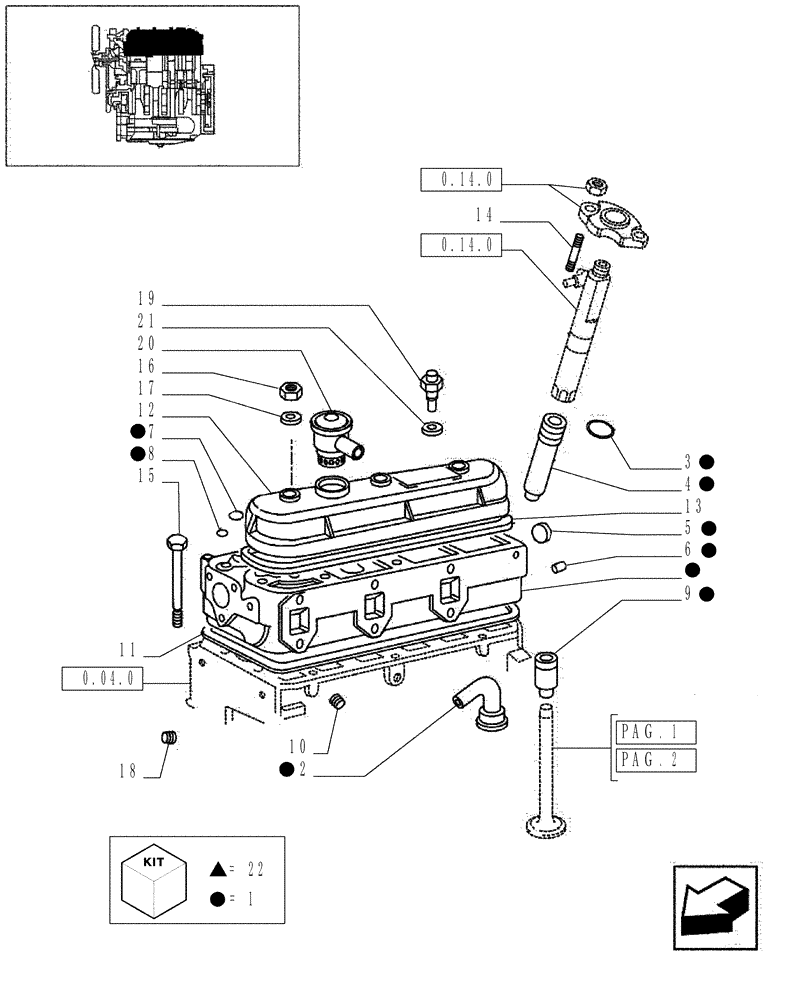

Запчасти Case IH JX95 (0.06.0/05[01]) - VAR - 747, 391102 - TTF ENGINE TIER 2 - HEAD CYLINDER (01) - ENGINE

1

5098248

CYLINDER HEAD

JX80

1шт.

1

5098249

CYLINDER HEAD

JX60

1шт.

1

5098247

CYLINDER HEAD

JX70

1шт.

1

5098250

CYLINDER HEAD

JX90-JX95

1шт.

2

4818862

HYD TUBE

3шт.

3

14453981

O-RING,0.989" ID x 0.07" Width

6шт.

4

4770859

SLEEVE

3шт.

5

14282970

PLUG,M45, Tapered, Stainless

1шт.

6

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

M10 x 1.25

1шт.

7

14282470

PLUG,M28, Tapered, Stainless

6шт.

8

14282170

PLUG,M20, Tapered, Stainless

1шт.

9

4802127

VALVE GUIDE

6шт.

10

87573793

CUP PLUG,7mm OD, 7mm High, 0.80mm Thk

D=7

3шт.

11

99435433

CYLINDER HEAD GASKET

JX80-JX90-JX95

1шт.

11

99481361

CYLINDER HEAD GASKET,1.55mm Thk

JX60-JX70

1шт.

12

5096330

COVER

JX70

1шт.

12

5096331

COVER

JX90-JX95

1шт.

12

98418861

COVER

JX60

1шт.

13

4845135

SEAL

JX60-JX70

1шт.

13

4845136

SEAL,12.8mm W x 1178mm L

1шт.

14

13517530

STUD,M8 x 1.25 x 45mm

6шт.

15

4796457

BOLT,Flng, M12 x 1.25 x 122.5mm

M12x1.25

14шт.

16

98417659

NUT,Hex Flg, M8, 1.25mm Pitch

3шт.

17

98416134

SEALING WASHER,13mm ID x 24mm OD x 1.5mm Thk

3шт.

18

87573794

PLUG,Flg Cup, 9mm OD x 8.50mm High

D=9

1шт.

19

504088112

SENDER UNIT

1шт.

20

5099120

BREATHER

1шт.

Valid with JX70, JX90, JX95 Models

1шт.

21

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

1шт.
