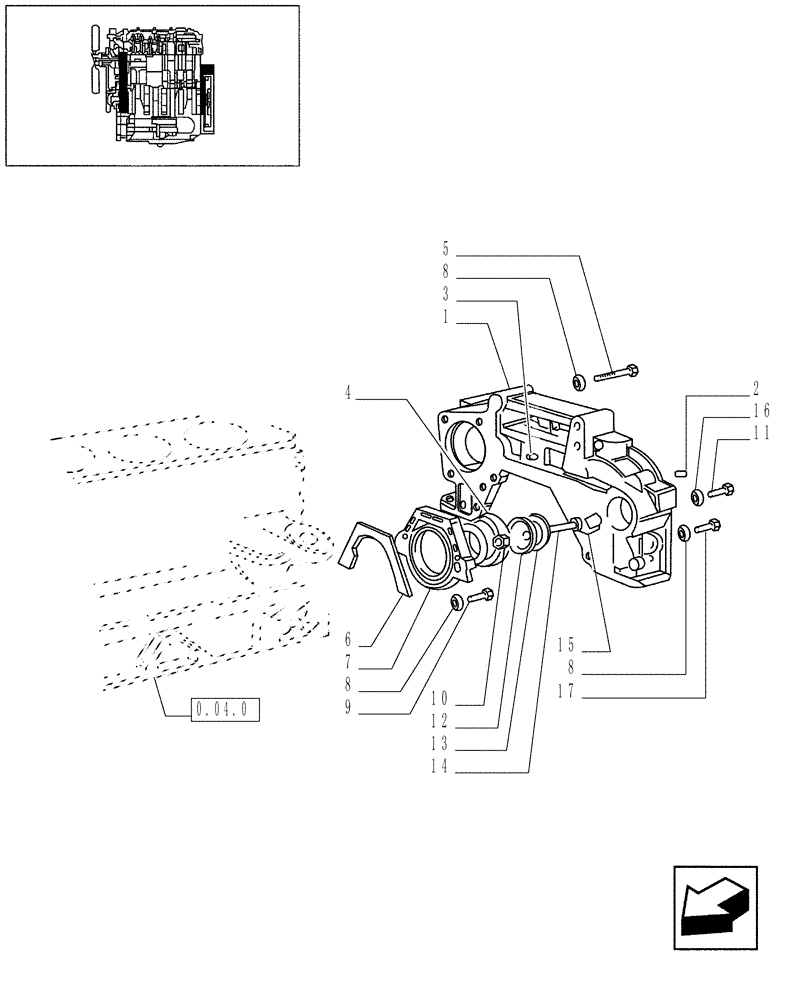

Запчасти Case IH JX95 (0.04.3/02[02]) - VAR - 747, 391102 - TTF ENGINE TIER 2 - COVERS & GASKETS (01) - ENGINE

1

5096896

SUPPORT

1шт.

2

4658441

DOWEL,10mm OD x 20mm L

2шт.

3

10839710

DOWEL,M10 x 15.00mm

2шт.

4

98488392

OIL SEAL

1шт.

5

16613321

BOLT

2шт.

6

4849994

GASKET,0.8mm Thk

1шт.

7

4781935

BEARING COVER

1шт.

8

11200179

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

9

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

4шт.

10

10519660

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

11

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

12

4670802

COVER

1шт.

13

98400797

GASKET,47mm ID x 62mm OD x 0.8mm Thk

1шт.

14

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

15

5096741

HOUSING

TD95

1шт.

15

5096742

HOUSING

1шт.

16

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

17

16612321

BOLT,M8 x 1.25 x 120mm

2шт.
