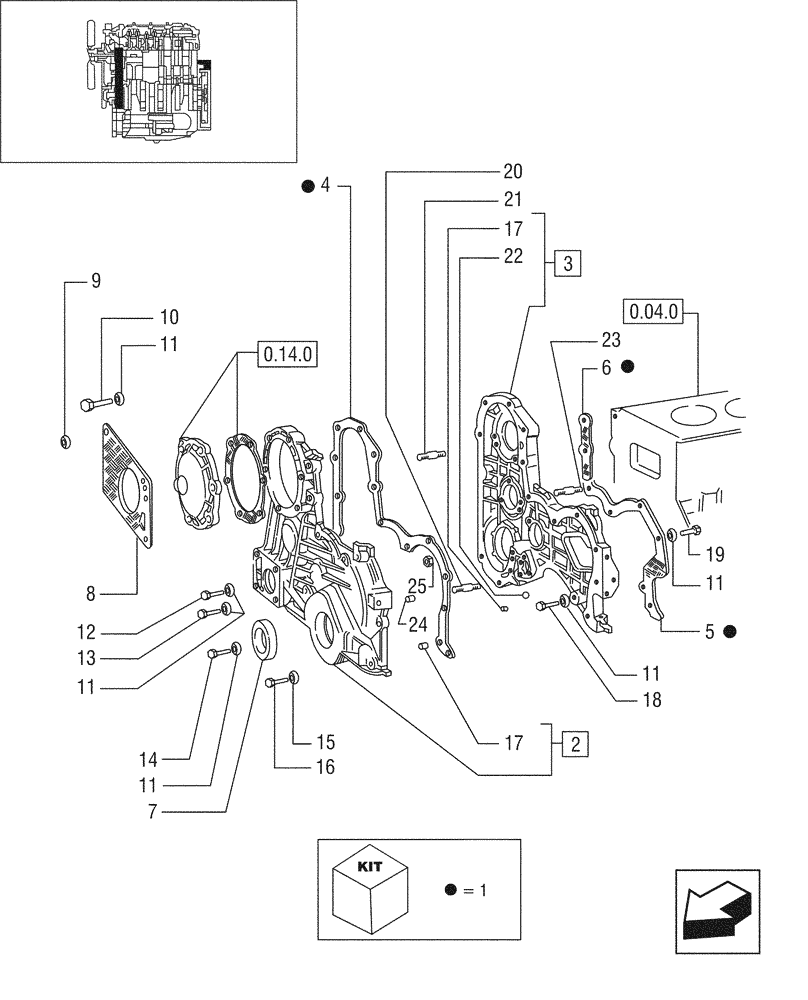

Запчасти Case IH JX95 (0.04.3/01[01]) - CRANKCASE COVERS - TIER 1 ENGINE (01) - ENGINE

1

4781579

GASKET

1шт.

2

4769749

COVER

Assy

1шт.

3

5096552

HOUSING

1шт.

3

5096553

HOUSING

JX95

1шт.

4

98418138

GASKET,0.8mm Thk

1шт.

5

98424046

GASKET,0.8mm Thk

1шт.

6

98432469

GASKET,0.8mm Thk

1шт.

7

84478262

OIL SEAL

1шт.

8

504092108

GASKET

1шт.

9

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

10

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

11

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

20шт.

12

16044921

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

3шт.

13

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

1шт.

14

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

3шт.

15

12638601

WASHER,M10 x 18 x 2

1шт.

16

15888821

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

17

13526170

THREADED INSERT

5шт.

18

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

19

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

20

13543621

STUD,M8 x 16 x 30mm

4шт.

21

84276320

STUD,M8 x 1.25 x 44mm

M8x1.25x14x30

2шт.

22

4605220

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.

23

13546921

STUD,M10 x 1.25 x 20mm x 50mm

M10x1.25x20x50

3шт.

24

10839610

DOWEL,M8 x 12mm

D=8 x 12 mm

2шт.

25

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.
