Запчасти Case IH JX95 (0.04.2/02[04]) - OIL SUMP - TIER 1 ENGINE (01) - ENGINE

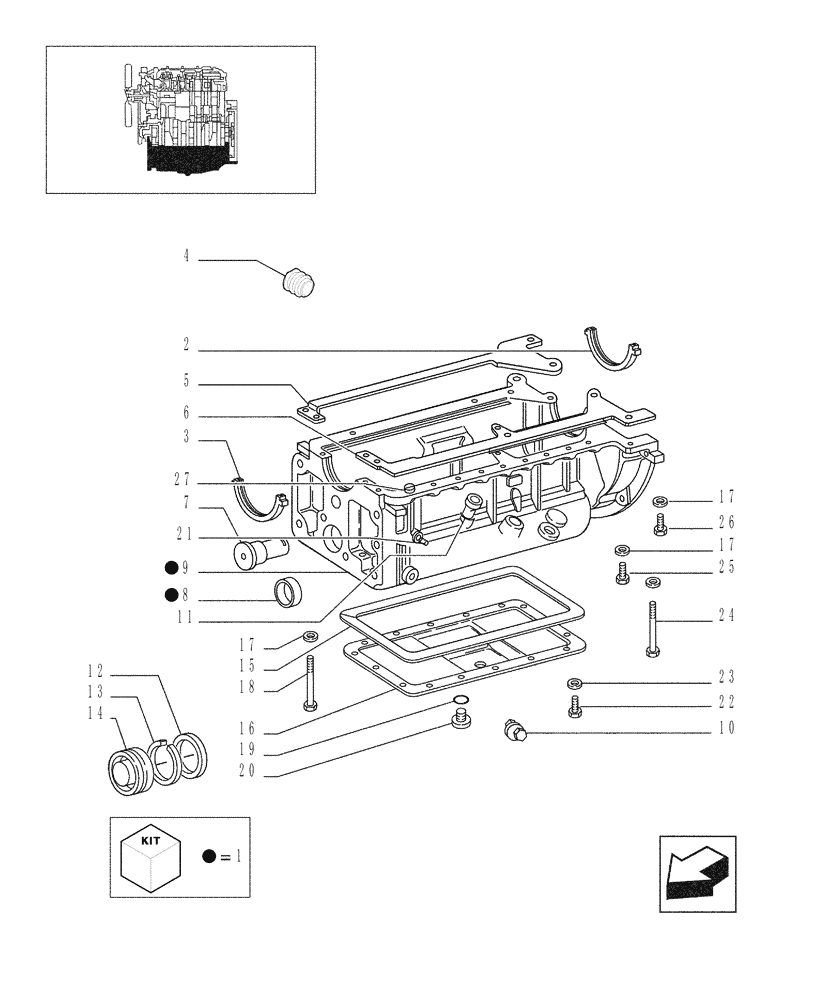

Схема запчастей Case IH JX95 - (0.04.2/02[04]) - OIL SUMP - TIER 1 ENGINE (01) - ENGINE
14
23
2
27
13
15
16
24
26
20
12
10
17
4
1
3
18
9
22
1
1
17
21
8
5
25
17
19
7
6
11
1

Артикул

Название

Примечание

Количество

1

87736776

ENGINE OIL PAN

1шт.

2

4600753

SEAL

Rear

1шт.

3

4031577

SEAL,10mm Thk

Front

1шт.

4

504142590

PLUG

1шт.

5

99462471

GASKET

1шт.

6

99462472

GASKET

1шт.

7

4812930

PIN,44mm OD x 79mm L

1шт.

8

5088007

BUSHING

1шт.

9

504028279

SUMP

1шт.

10

590353

PLUG,15mm OD x 10mm High, Plastic

5шт.

11

4694949

TUBE

1шт.

12

14464881

O-RING,2.484" ID x 2.762" OD x 0.139"

1шт.

13

11061576

SNAP RING,M72, Int

1шт.

14

4812554

PLUG

1шт.

15

99439562

GASKET

1шт.

16

99439348

COVER

1шт.

17

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

25шт.

18

99442242

BOLT,M21.8

3шт.

19

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

20

2852318

PLUG,Rd Hd, Int Hex, M22 x 1.5 x 16mm, ORB

M22 x 1.5

1шт.

21

14326050

PLUG,Pipe, Hex Skt, M10 x 1.25 x 11mm, Taper Thd, AL

M10 x 1.25

1шт.

22

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

18шт.

23

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

18шт.

24

4607934

SCREW,Hex, M10 x 1.25 x 178mm

M10 x 1.25 x 178

2шт.

25

11288031

BOLT,Hex, M10 x 1.25 x 60, 10.9

M10X1.25X60

1шт.

25

11343731

SCREW,Hex, M10 x 1.25 x 65mm, Cl 10.9

M10X1.25X65

5шт.

25

15888731

SCREW,Hex, M10 x 1.25 x 55mm, Cl 10.9

M10x1.25x55

11шт.

25

15888821

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

M10X1;25X70

1шт.

26

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

27

14456981

O-RING,0.424" ID x 0.103" Width

(M10.77 ID x 2.62 Thk)

1шт.

Выбрано товаров: 30
