Запчасти Case IH JX95 (0.04.2/01[02]) - OIL SUMP - TIER 2 ENGINE (01) - ENGINE

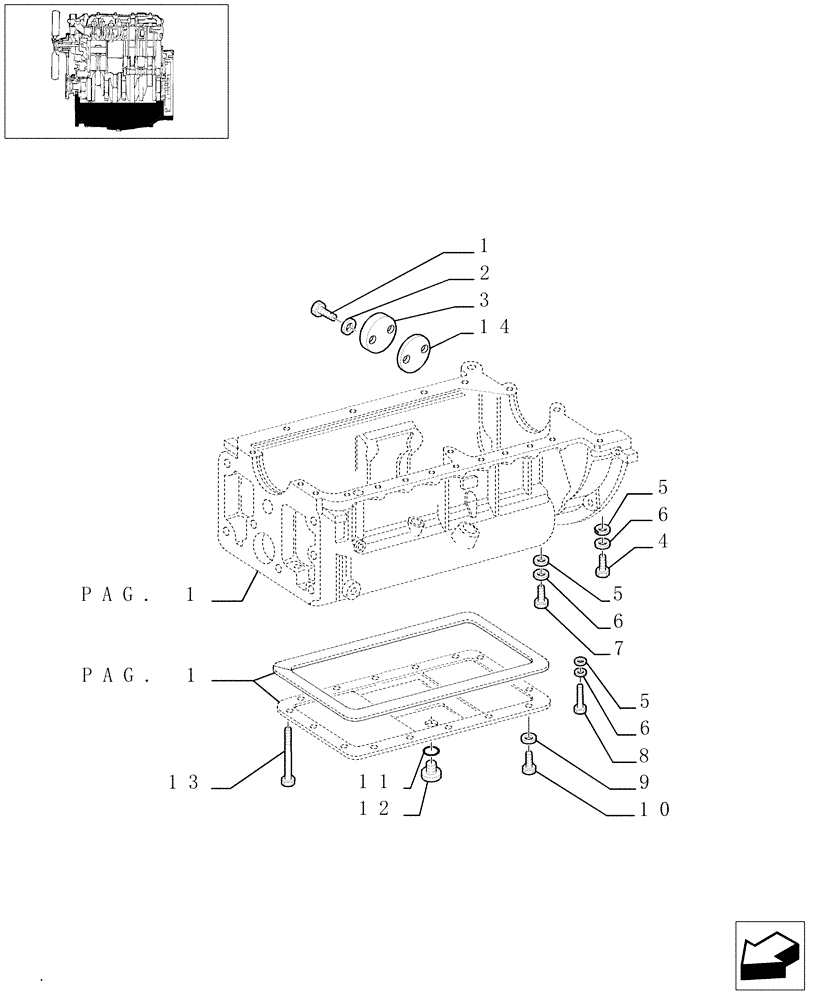

Схема запчастей Case IH JX95 - (0.04.2/01[02]) - OIL SUMP - TIER 2 ENGINE (01) - ENGINE
6
2
3
13
6
10
pag. 1
pag. 1
7
12
5
6
9
5
1
8
4
11
5
14

Артикул

Название

Примечание

Количество

1

16602124

SCREW,M5 x 16mm

M5X16

2шт.

2

11199271

LOCK WASHER

M5

2шт.

3

98413492

COVER

1шт.

4

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

2шт.

5

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

M10 x 18

25шт.

6

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M10 x 18 x 2

25шт.

7

11343731

SCREW,Hex, M10 x 1.25 x 65mm, Cl 10.9

5шт.

7

15888731

SCREW,Hex, M10 x 1.25 x 55mm, Cl 10.9

11шт.

7

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

8

4607934

SCREW,Hex, M10 x 1.25 x 178mm

M10 x 1.25 x 178

2шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

18шт.

10

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

18шт.

11

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

12

2852318

PLUG,Rd Hd, Int Hex, M22 x 1.5 x 16mm, ORB

M22 x 1.5

1шт.

13

99442242

BOLT,M21.8

D=21.8X2.6

3шт.

14

98413493

GASKET

1шт.

Выбрано товаров: 16
