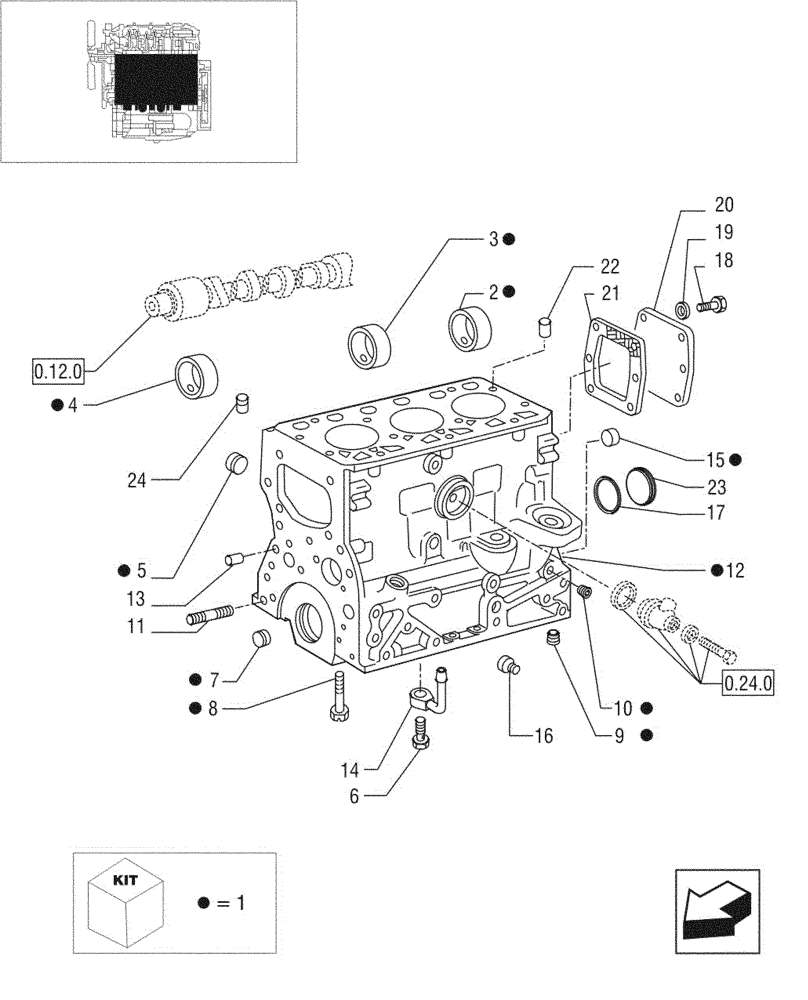

Запчасти Case IH JX95 (0.04.0/04) - CRANKCASE - TIER 1 ENGINE (01) - ENGINE

1

5096217

CYLINDER BLOCK

JX60

1шт.

1

5096222

CYLINDER BLOCK,3 Cylinders

JX80

1шт.

1

5096225

CYLINDER BLOCK,3 Cylinders

JX70

1шт.

1

5096228

CYLINDER BLOCK

JX90-JX95

1шт.

2

5088004

BUSHING

1шт.

3

5088003

BUSHING

1шт.

4

5088002

BUSHING

1шт.

5

14282770

PLUG,M36, Tapered, Stainless

3шт.

6

98475228

BANJO BOLT

3шт.

7

14328504

PLUG

5шт.

8

4792169

BOLT,Hex, M14 x 1.5 x 115mm

M14 x 1.5 x 137

8шт.

9

403125

PLUG

10шт.

10

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

4шт.

11

13517821

STUD,M8 x 1.25 x 60mm, Cl 8.8

M8 x 60

1шт.

12

5096218

CYLINDER BLOCK

JX60

1шт.

12

5096223

CYLINDER BLOCK

JX80

1шт.

12

5096226

CYLINDER BLOCK

JX70

1шт.

12

5096229

CYLINDER BLOCK

JX90-JX95

1шт.

13

10839610

DOWEL,M8 x 12mm

D=8 x 12 mm

2шт.

14

98475474

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

3шт.

15

14327401

PLUG,M13, Tapered

2шт.

16

10269601

PLUG,M16 x 1.5

1шт.

17

17284481

GASKET

D=58.4 x 2.6 mm

1шт.

18

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

6шт.

19

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

20

4653282

COVER

1шт.

21

99445564

GASKET

1шт.

22

4846850

DOWEL,M9 x 12mm

1шт.

23

98412737

PLUG,55mm ID x 63.93mm OD x 8mm Thk, w/O-Ring

M63

1шт.

24

14165470

LOCK PIN,M5 x 10, Slotted

1шт.
