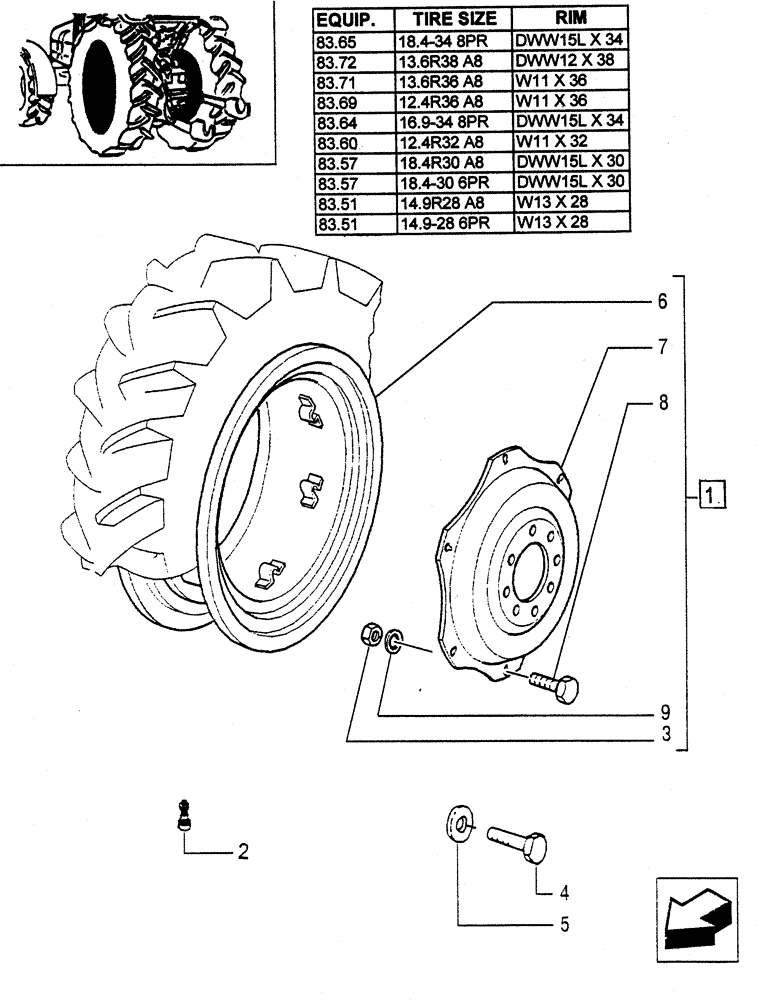

Запчасти Case IH JX95 (83.00[03]) - DRIVE WHEELS (11) - WHEELS/TRACKS

1

47124707

WHEEL ASSY

DWW15L x 34, JX95

2шт.

1

47124717

WHEEL ASSY

DWW12 x 38, JX80, JX90, JX95

2шт.

1

47124720

WHEEL ASSY

DWW15L x 30, JX80, JX90, JX95

2шт.

1

5092754

WHEEL ASSY

W13L x 28, JX60, JX70

2шт.

1

5092756

WHEEL ASSY

W11 x 32, JX60, JX70

2шт.

1

5092758

WHEEL ASSY

W11 x 36, JX60, JX70

2шт.

1

5092762

WHEEL ASSY

W11 x 36, JX80

2шт.

2

5185378

VALVE STEM

2шт.

3

10790521

NUT,M16 x 1.5, Cl 10

16шт.

4

15983831

BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9

16шт.

5

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

D=19X40X6

16шт.

6

47128182

RIM

DWW11 x 36 JX60, JX70, JX80

2шт.

6

47128186

RIM,DWW15Lx34, 8 Bolts, CASE Silver

DWW15L x 34, JX80, JX90, JX95

2шт.

6

47128194

RIM

DWW12 x 38 JX60, JX70

2шт.

6

47128195

RIM,DWW15Lx30, 8 Bolts, CASE Silver

DWW15 x 30 JX60, JX70, JX80, JX90

2шт.

6

47130970

RIM,W13 x 28, 6 Bolts, CASE Silver

W13 x 28, JX60, JX70

2шт.

6

5093874

RIM

W11 x 36, JX80

2шт.

6

5093885

RIM

DWW15 x 30, JX80, JX90, JX95

2шт.

6

5093877

RIM

W13 x 28, JX60, JX70

2шт.

6

47128192

RIM,DWW12 x 38, 8 Bolts, CASE Silver

DWW12 x 38W, JX80, JX90, JX95

2шт.

7

47128166

WHEEL DISC,616mm DIA, 8 Bolts, CASE Silver

JX60, JX70

2шт.

7

47128170

WHEEL DISC,717.5mm DIA, 8 Bolts, CASE Silver

JX80, JX90, JX95

2шт.

7

47128173

WHEEL DISC

JX60, JX70

2шт.

7

47128174

WHEEL DISC,616mm DIA, 8 Bolts, CASE Silver

JX60, JX70, JX80, JX90

2шт.

7

47129794

WHEEL DISC

JX60, JX70

2шт.

7

5093884

WHEEL DISC

JX80, JX90, JX95

2шт.

7

5093866

WHEEL DISC

JX80

2шт.

7

5093867

WHEEL DISC

JX60, JX70

2шт.

7

47128171

WHEEL DISC,818.4mm Dia, 8 Bolts , Case IH Silver

JX80, JX90, JX95

2шт.

8

4959003

BOLT,M16 x 1.5 x 40mm, CL 10.9

M16 x 1.5 x 38

12шт.

8

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

8

5131725

WHEEL BOLT,M16 x 1.5 x 125mm

16шт.

9

11200271

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 4.4mm Thk

M16 x 34 x 4.4

12шт.

9

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.
