Запчасти Case IH JX95 (83.00[02]) - DRIVE WHEELS (11) - WHEELS/TRACKS

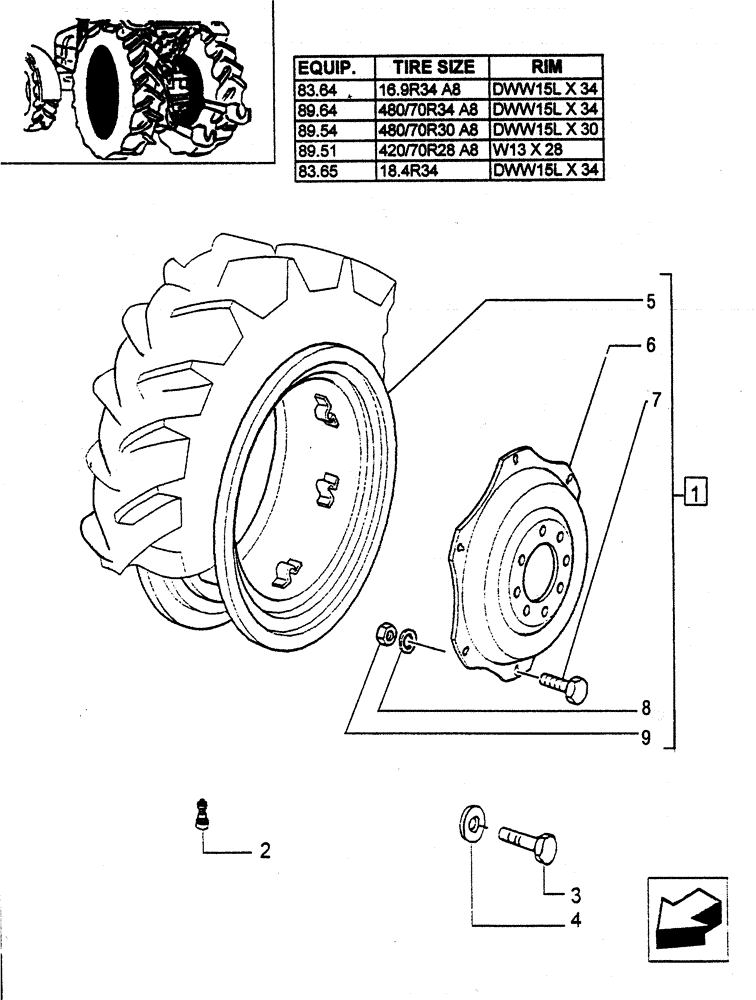

Схема запчастей Case IH JX95 - (83.00[02]) - DRIVE WHEELS (11) - WHEELS/TRACKS
2
8
3
6
9
4
1
5
7

Артикул

Название

Примечание

Количество

1

47124707

WHEEL ASSY

DWW15L x 34, JX90, JX95

2шт.

1

5092754

WHEEL ASSY

W13L x 28, JX60

2шт.

1

5092770

WHEEL ASSY

DWW15L x 30, JX80

2шт.

2

5185378

VALVE STEM

2шт.

3

15983831

BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9

16шт.

4

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.

5

47128186

RIM,DWW15Lx34, 8 Bolts, CASE Silver

DWW15L x 34, JX80, JX90, JX95

2шт.

5

47130970

RIM,W13 x 28, 6 Bolts, CASE Silver

W13 x 28, JX60, JX70

2шт.

5

5093885

RIM

DWW15 x 30

2шт.

6

47128166

WHEEL DISC,616mm DIA, 8 Bolts, CASE Silver

2шт.

6

47128170

WHEEL DISC,717.5mm DIA, 8 Bolts, CASE Silver

15 x 34, JX80, JX90, JX95

2шт.

6

5093886

WHEEL DISC

2шт.

7

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

7

5131725

WHEEL BOLT,M16 x 1.5 x 125mm

16шт.

8

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

9

10790521

NUT,M16 x 1.5, Cl 10

16шт.

Выбрано товаров: 16
