(82.00[03]) - 4WD DRIVING WHEELS - FOR HIGH CLEARANCE VERSION

Запчасти Case IH JX95 (82.00[03]) - 4WD DRIVING WHEELS - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS

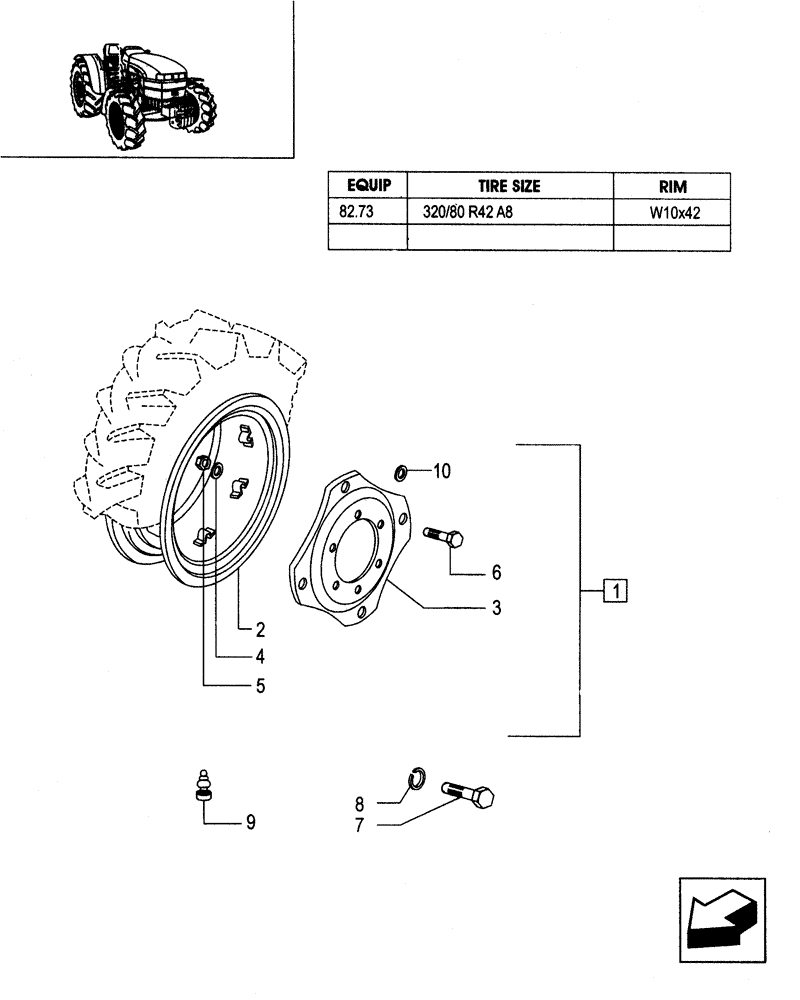

Схема запчастей Case IH JX95 - (82.00[03]) - 4WD DRIVING WHEELS - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS
9
1
4
6
3
7
8
5
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5096009

WHEEL ASSY

10 x 42

2шт.

2

5095330

RIM

w10x42

1шт.

3

5095331

WHEEL DISC

1шт.

4

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

8шт.

5

10790524

NUT,M16 x 1.5

8шт.

6

5095332

BOLT

M16 x 1.5 x 80

8шт.

7

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

16шт.

8

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

9

5185378

VALVE STEM

2шт.

10

5095333

WASHER

WASHER D=20

8шт.

10

5095334

WASHER

D=10

8шт.
