(82.00[02]) - 4WD DRIVING WHEELS - FOR HIGH CLEARANCE VERSION

Запчасти Case IH JX95 (82.00[02]) - 4WD DRIVING WHEELS - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS

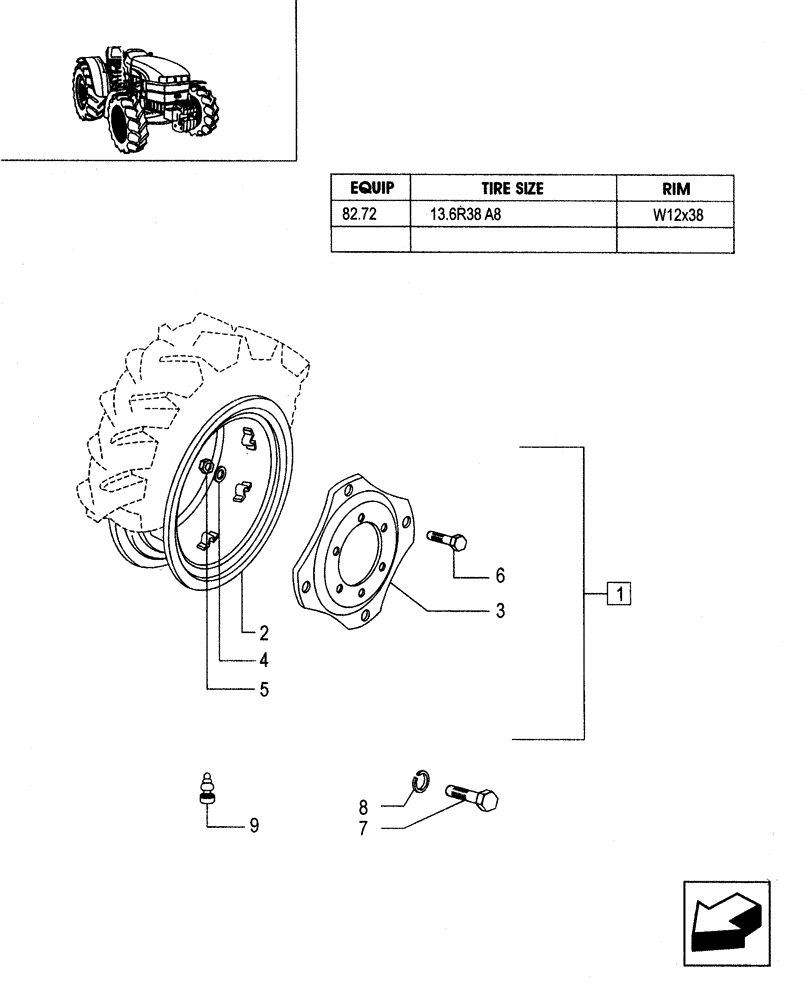

Схема запчастей Case IH JX95 - (82.00[02]) - 4WD DRIVING WHEELS - FOR HIGH CLEARANCE VERSION (11) - WHEELS/TRACKS
3
6
7
4
2
5
9
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5094188

WHEEL ASSY.

12 x 38

2шт.

1

5094794

WHEEL ASSY.

12 x 38, JX90

2шт.

2

5094190

RIM

1шт.

3

5094192

WHEEL DISC

1шт.

3

5094192

WHEEL DISC

JX90

1шт.

4

5164709

WASHER,16.6mm ID x 33mm OD x 6mm Thk

M16.6 x 33 x 6

8шт.

5

10790521

NUT,M16 x 1.5, Cl 10

8шт.

6

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

8шт.

7

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

16шт.

8

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

9

5185378

VALVE STEM

2шт.
