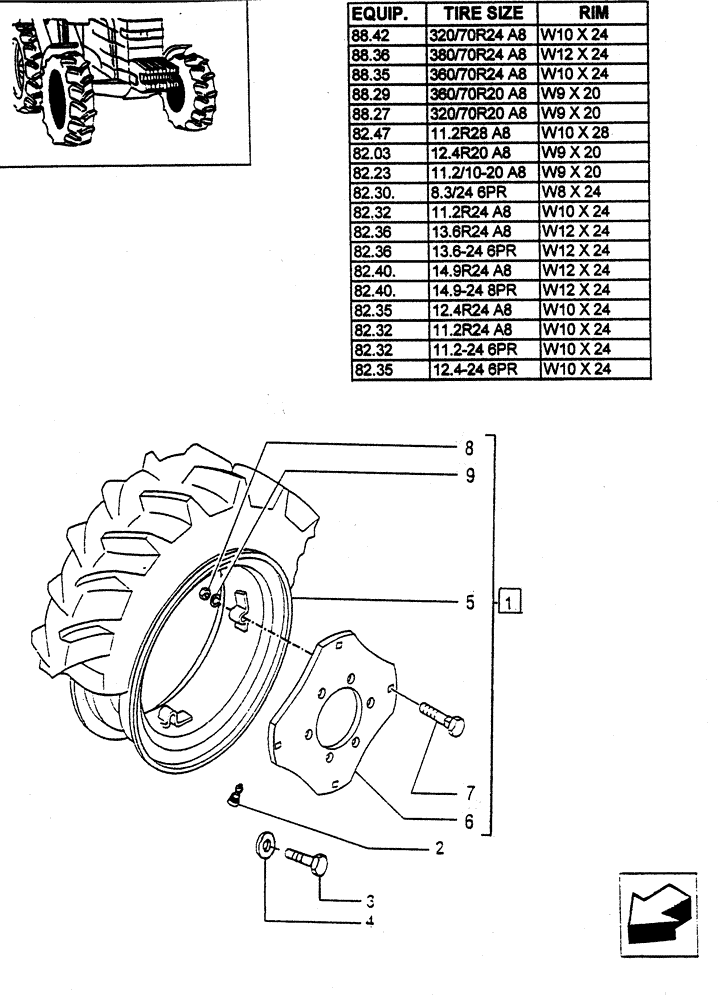

Запчасти Case IH JX95 (82.00[01]) - 4WD DRIVING WHEELS (11) - WHEELS/TRACKS

1

47124658

WHEEL ASSY

W12 x 24, JX95

2шт.

1

47124718

WHEEL ASSY

W11 x 20, JX60, JX70

2шт.

1

47124719

WHEEL ASSY

W9 x 20, JX60, JX70

2шт.

1

5090031

WHEEL ASSY

W10 x 24, JX60, JX70, JX80

2шт.

1

5092359

WHEEL ASSY

W12 x 24, JX95

2шт.

1

5092728

WHEEL ASSY

W10 x 24, JX80, JX90, JX95

2шт.

1

5092733

WHEEL ASSY

W9 x 20, JX60, JX80

2шт.

1

5092741

WHEEL ASSY

W10 x 28, JX80, JX90, JX95

2шт.

1

5092743

WHEEL ASSY

W12 x 24, JX80, JX90, JX95

2шт.

1

5092818

WHEEL ASSY

W12 x 24, JX60, JX70

2шт.

2

5185378

VALVE STEM

2шт.

3

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

16шт.

3

15983821

SCREW,Hex, M18 x 1.5 x 35mm, Cl 8.8, Full Thd

12шт.

4

10572279

WASHER,M18

12шт.

4

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

5

47128175

RIM,W12 x 24, 8 Bolts, CASE Silver

W12 x 24

2шт.

5

47128193

RIM

W11 x 20, JX60, JX70

2шт.

5

47128194

RIM

W9, JX60, JX70

2шт.

5

5091732

RIM

W10 x 24, JX60, JX70, JX80, JX90, JX95

2шт.

5

5093873

RIM

W12 x 24

2шт.

5

5093878

RIM

W10 x 28, JX80, JX90, JX95

2шт.

5

5093879

RIM

W8 x 24, JX60, JX70

2шт.

5

5093880

RIM

W12-24, J80, JX90, JX95

2шт.

5

5093873

RIM

W9 x 20

2шт.

6

5091733

WHEEL DISC

JX80, JX90, JX95

2шт.

6

5092240

WHEEL DISC

JX60, JX70

2шт.

6

5093869

WHEEL DISC

JX80, JX90, JX95

2шт.

6

5093872

WHEEL DISC

2шт.

6

5093883

WHEEL DISC

2шт.

6

47128164

WHEEL DISC

W12 x 24

2шт.

6

47128173

WHEEL DISC

JX60, JX70

2шт.

7

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

12шт.

8

10790521

NUT,M16 x 1.5, Cl 10

12шт.

9

5164709

WASHER,16.6mm ID x 33mm OD x 6mm Thk

M16.6 x 33 x 6

12шт.
