(1.93.3/03) - VAR - 191, 335879 - DELUXE SEAT WITH RETRACTABLE BELTS

Запчасти Case IH JX95 (1.93.3/03) - VAR - 191, 335879 - DELUXE SEAT WITH RETRACTABLE BELTS (10) - OPERATORS PLATFORM/CAB

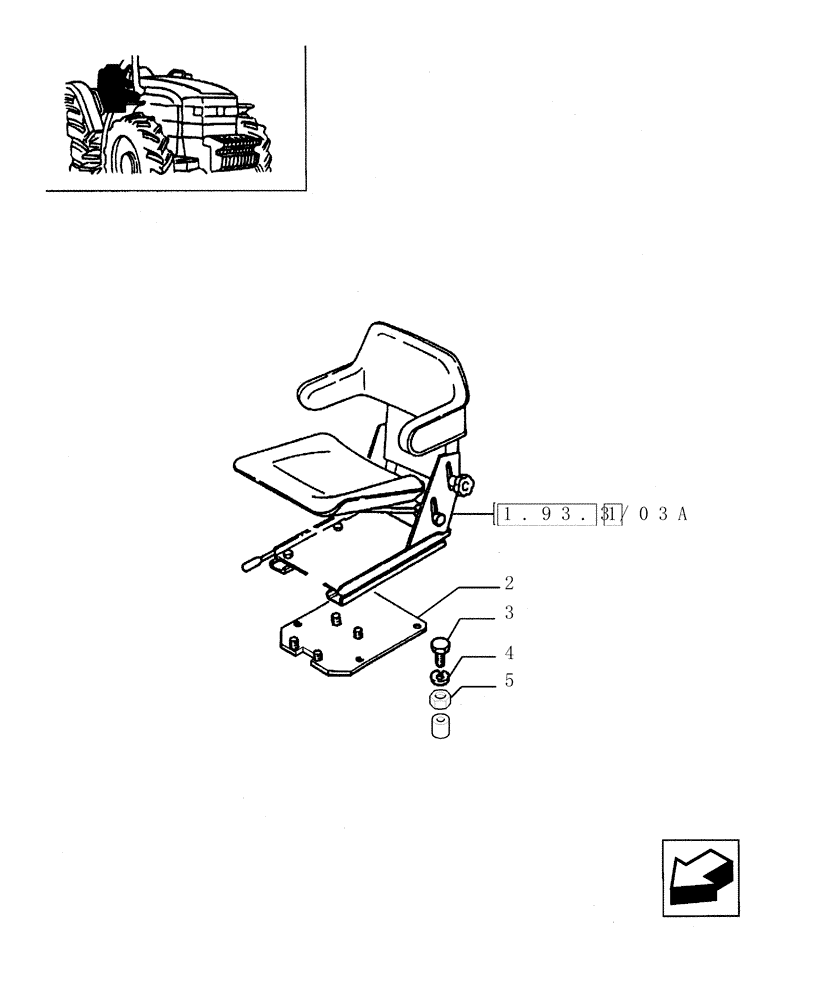

Схема запчастей Case IH JX95 - (1.93.3/03) - VAR - 191, 335879 - DELUXE SEAT WITH RETRACTABLE BELTS (10) - OPERATORS PLATFORM/CAB
4
1
1.93.3/03a
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87494045

DRIVER SEAT

1шт.

2

5097150

SEAT PLATE

1шт.

3

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

3

11234721

BOLT,Hex, M10 x 1.25 x 45, 8.8

2шт.

4

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

M8

4шт.

5

12164711

NUT,M10 x 1.25, Cl 8

4шт.

6

5097247

SPACER

2шт.
