Запчасти Case IH JX95 (1.89.6[03]) - IMPLEMENT ATTACHMENT DEVICE - STABILIZER BAR (09) - IMPLEMENT LIFT

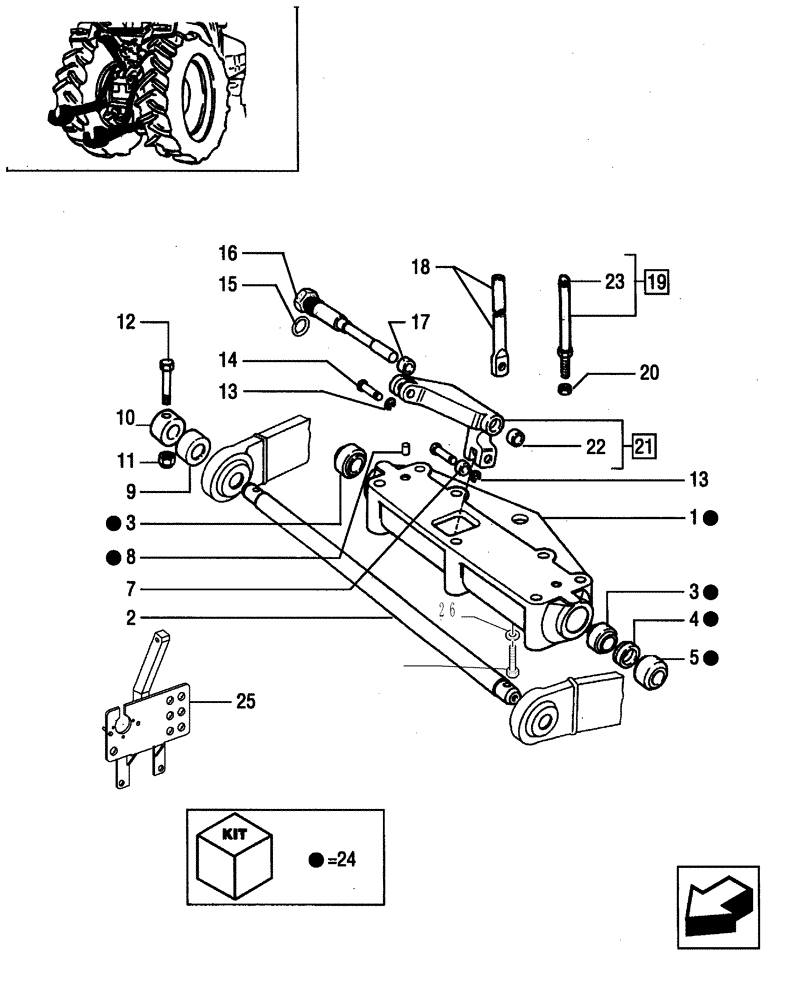

Схема запчастей Case IH JX95 - (1.89.6[03]) - IMPLEMENT ATTACHMENT DEVICE - STABILIZER BAR (09) - IMPLEMENT LIFT
14
12
22
25
13
13
24
24
3
19
16
17
26
6
24
23
24
24
9
15
11
1
4
10
5
21
2
24
3
24
20
24
18
7
8

Артикул

Название

Примечание

Количество

1

5094344

SUPPORT

JX95

1шт.

1

5116242

SWING CARRIAGE

JX60-JX70-JX80-JX90

1шт.

2

5094340

STABILIZER BAR,596mm L

JX95

1шт.

2

5116243

SHAFT,600mm L

JX60-JX70-JX80-JX90

1шт.

3

5109977

SPHERICAL BEARING,30mm ID x 47mm OD x 22mm W

JX95

2шт.

3

5116244

BUSHING,25mm ID x 25mm OD x 20mm L

JX60-JX70-JX80-JX90

2шт.

4

47129340

OIL SEAL,28.1mm ID x 42.5mm OD x 13.8mm Thk

JX95

2шт.

4

47129342

SEAL,23.1mm ID x 37mm OD x 12.3mm Thk

JX60-JX70-JX80-JX90

2шт.

5

5116245

SPACER,37mm ID x 42.06mm OD x 24mm L

JX60-JX70-JX80-JX90

2шт.

5

5171675

SPACER,46.98mm ID x 54.05mm OD x 40.5mm L

JX95

2шт.

6

15981621

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

7шт.

7

5109156

ROLLER,21mm OD x 12mm L

1шт.

8

5119529

DOWEL,15mm OD x 22mm L

2шт.

9

5116246

SPACER,25.5mm ID x 40mm OD x 25mm L

JX60-JX70-JX80-JX90

2шт.

9

5177788

SPACER,25.5mm ID x 40mm OD x 14mm L

JX95

2шт.

10

5116247

RING,24mm ID x 38.4mm OD x 25mm L

2шт.

11

12574511

LOCK NUT,M10 x 1.25, Cl 8

2шт.

12

84203262

BOLT,M10 x 1.25 x 55mm

M10x1.25x55

1шт.

12

15888721

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

2шт.

13

11065976

CIRCLIP,M10, Ext

2шт.

14

5109172

PIN,10mm OD x 33mm L

2шт.

15

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

16

5094341

PIN,22mm OD x 195mm L

JX95

1шт.

16

5116248

PIN

JX60-JX70-JX80-JX90

1шт.

17

5117691

SPACER,14.1mm ID x 19mm OD x 10mm L

1шт.

18

5119957

ROD

1шт.

19

5134791

ROD

1шт.

20

10791011

THIN NUT,Thin, M10 x 1.25, Cl 04

1шт.

21

5094342

SUPPORT

JX95

1шт.

21

5118548

LEVER

JX60-JX70-JX80-JX90

1шт.

22

5109160

ROLLER BEARING,Needle, 14mm ID x 20mm OD x 12mm W

2шт.

23

20063570

BALL,10.32mm OD

2шт.

24

5162181

SUPPORT

Assy

1шт.

25

5092601

SUPPORT

Quick Coupling, JX80, JX90, JX95

1шт.

26

12601774

WAVE WASHER,17mm ID x 30mm OD x 1.60mm, 6.30mm Max, CST, DAC

7шт.

Выбрано товаров: 35
