Запчасти Case IH JX95 (1.82.7/06) - VAR - 827 - 3 REAR CONTROL VALVES (07) - HYDRAULIC SYSTEM

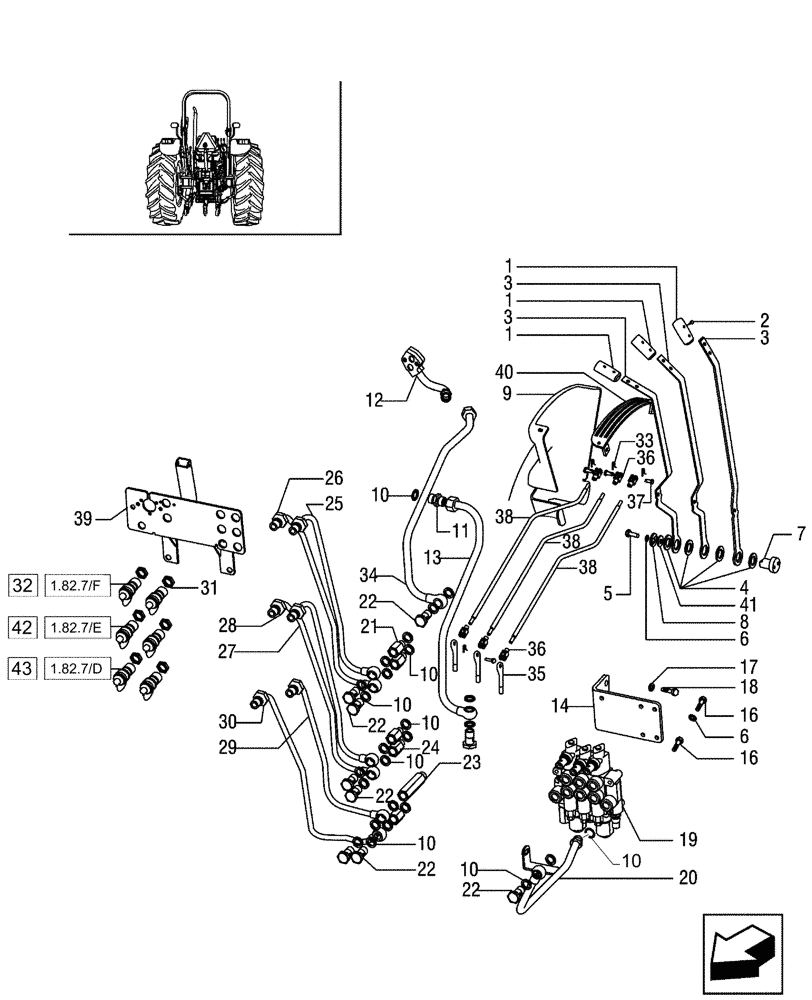

Схема запчастей Case IH JX95 - (1.82.7/06) - VAR - 827 - 3 REAR CONTROL VALVES (07) - HYDRAULIC SYSTEM
42
1.82.7/f
1.82.7/d
32
1.82.7/e
43
10

Артикул

Название

Примечание

Количество

1

5097240

KNOB

Green

1шт.

1

5097241

KNOB

Light Blue

1шт.

1

5097242

KNOB

Brown

1шт.

2

15919401

SCREW,Pozidriv Flat Hd Csk, M6.3 x 16mm

14 x 16

2шт.

3

5097233

LEVER

3rd Distrib.

1шт.

3

5097234

LEVER

2nd Distrib.

1шт.

3

5097235

LEVER

1st Distrib.

1шт.

4

5097223

FRICTION WASHER

4шт.

5

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

6

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

16шт.

7

5097219

SPACER

1шт.

8

5097224

WASHER

2шт.

9

5097236

COVER

1шт.

10

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

25шт.

11

5087002

HYD CONNECTOR

1шт.

12

5128343

RIGID TUBE

1шт.

13

5095103

PIPE

1шт.

14

5092077

SUPPORT

1шт.

15

16044421

SCREW,Hex, M8 x 60mm, Cl 8.8

1шт.

16

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

17

11198679

BELLEVILLE WASHER,13mm ID x 24mm OD x 0.6mm Thk

22шт.

18

15541021

SCREW,Hex, M12 x 1.25 x 60mm, Cl 8.8

4шт.

19

5095112

HYD VALVE SECTION

1шт.

20

5092043

PIPE

1шт.

20

5092045

TUBE

1шт.

20

5092047

TUBE

1шт.

21

5092080

SPACER,M18 x 1.5 Male ORFS x M18 x 1.5 Female ORFS

2шт.

22

5100984

BANJO BOLT,M18 x 1.5, 34mm L

9шт.

23

5092078

SPACER,M18 x 1.5 NPT x M18 x 1.5

1шт.

24

5092079

SPACER,M18 x 1.5 NPT x M18 x 1.5

2шт.

25

5092065

TUBE

Quick Coupling, First, 449 mm L

1шт.

26

5092067

TUBE

Quick Coupling, Second, 415 mm L

1шт.

27

5094320

TUBE

Quick Coupling, Third, 419 mm L

1шт.

28

5094324

TUBE

Quick Coupling, Fourth, 364.5 mm L

1шт.

29

5096140

TUBE

431 mm L

1шт.

30

5096986

TUBE

312 mm L

1шт.

31

5129168

BHD LOCK NUT,M24 x 1.5

6шт.

32

5091860

COUPLING, QUICK, FEM,Green

Green

2шт.

33

10734401

COTTER PIN,M2 x 22

2шт.

34

5092061

BRAKE LINE

1шт.

35

5097215

BRACKET

1шт.

36

5089026

SUPPORT

6шт.

37

5089126

PIN,12mm OD x 89mm L

6шт.

38

5097214

ROD

1st Distrib.

1шт.

38

5097220

ROD

2nd Distrib.

1шт.

38

5097230

ROD

3rd Distrib.

1шт.

39

5092601

SUPPORT

1шт.

40

5097229

COVER

1шт.

41

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

1шт.

42

5092198

COUPLING, QUICK, FEM,Light Blue

Light Blue

2шт.

43

5092199

COUPLING, QUICK, FEM,Brown

Brown

2шт.

Выбрано товаров: 51
