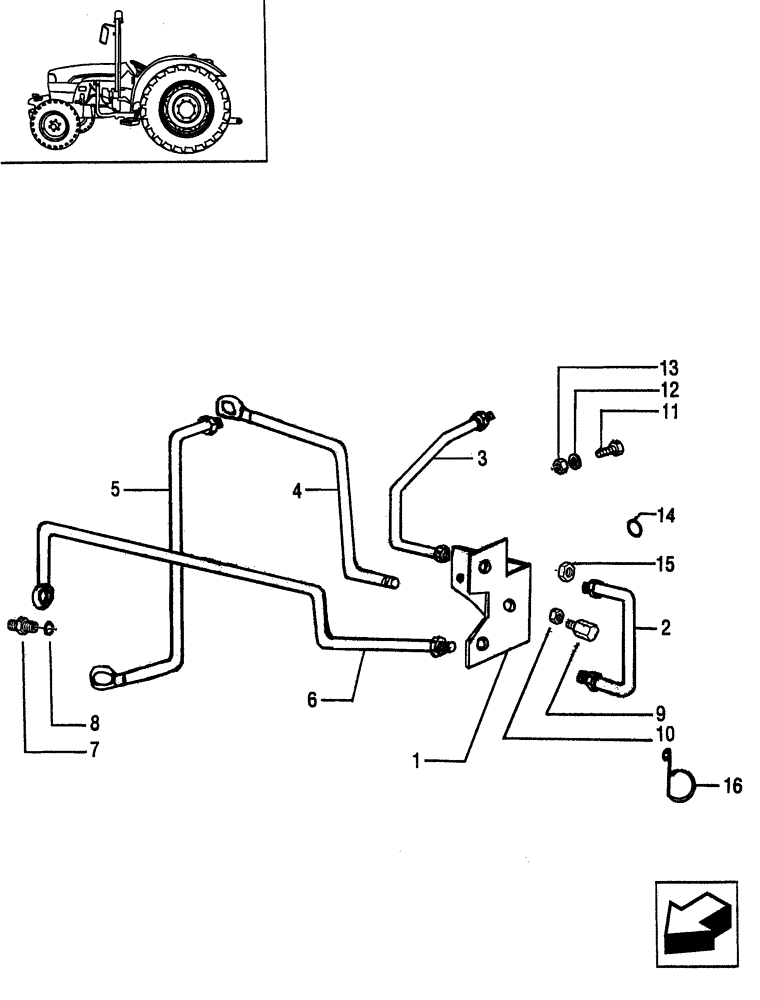

Запчасти Case IH JX95 (1.82.7/05) - VAR - 306, 335560, 744774 - TWO FRONT CONTROL VALVES - PIPES (07) - HYDRAULIC SYSTEM

1

5093775

SUPPORT

1шт.

2

5093770

PIPE

1шт.

3

87489665

PIPE

Manifold pressure

1шт.

4

87489706

PIPE

Manifold return

1шт.

5

5095102

BRAKE LINE

1шт.

6

87490433

PIPE

Manifold delivery

1шт.

7

5129189

HYD CONNECTOR

1шт.

8

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

9

5121789

REDUCER,M18 x 1.5 M ORB; M18 x 1.5 F ORB

1шт.

10

5092959

NUT

1шт.

11

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

12

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

13

16100821

NUT,M8, Cl 10

1шт.

14

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

3шт.

15

5092958

BHD LOCK NUT,1" 1/4 UNF

6шт.

16

5092988

CLIP

1шт.
