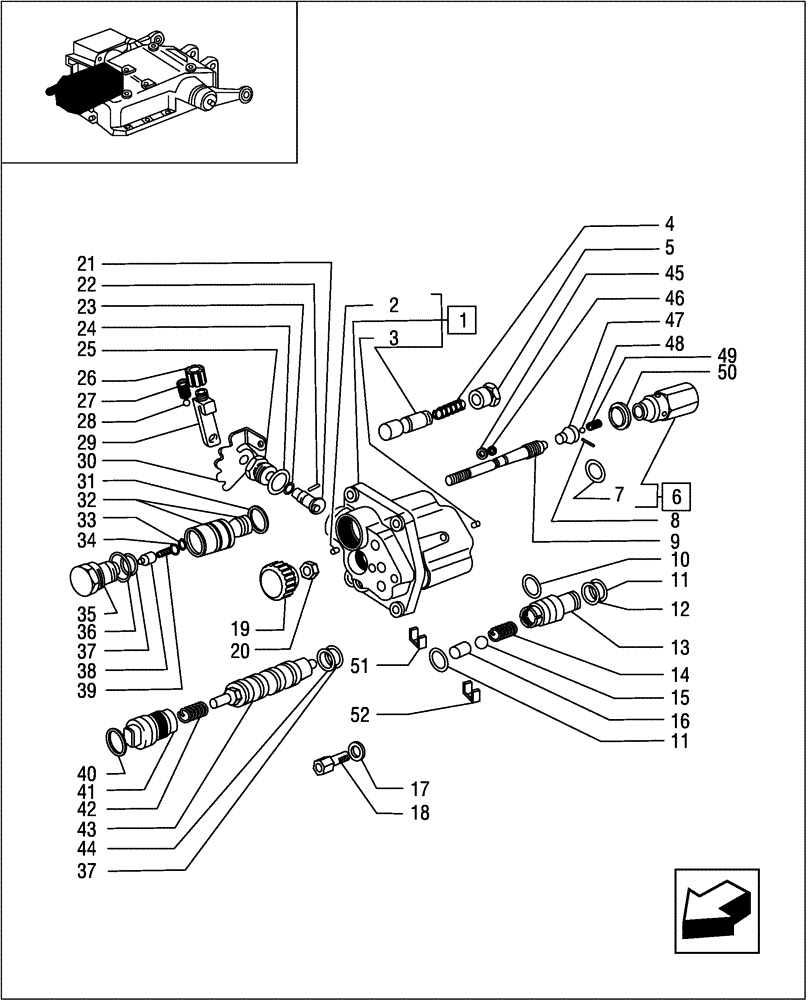

Запчасти Case IH JX95 (1.82.4/ A) - CONTROL VALVE AND LIFT VALVES - COMPONENTS (07) - HYDRAULIC SYSTEM

1

5117743

BODY

1шт.

2

10269150

PLUG,M6 x 1 x 60mm L

3шт.

3

5162458

PLUG,M10 x 1.25

2шт.

4

5117729

SPRING,Compression, 11mm OD x 44mm L

1шт.

5

5117734

PLUG,M20 x 1.5

1шт.

6

5117739

VALVE PRESSURE RELIE,M20 x 1.5

1шт.

7

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

8

14163670

ROLL PIN,M4 x 14, Slotted

1шт.

9

5117741

PIN

1шт.

10

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

11

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

12

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

13

5162608

PLUG,M24 x 1.5

1шт.

14

5156289

SPRING,Compression, 8.5mm OD x 25.5mm L

1шт.

15

20063580

BALL,13.49mm OD, Gr 100

1шт.

16

5156290

VALVE SEAT,20mm OD x 12mm Thk

1шт.

17

10296160

SEALING WASHER,M12.2 x 18 x 1, Copper

1шт.

18

14360524

HEX SOC SCREW,M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

19

5120798

KNOB

1шт.

20

10791014

NUT,M10 x 1.25, Cl 04

1шт.

21

5117735

PIN,12mm OD x 40.5mm L

1шт.

22

14161770

LOCK PIN,M3 x 16, Slotted

1шт.

23

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

2шт.

24

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

1шт.

25

5120760

PLUG,M22 x 1.5

1шт.

26

5163958

KNOB

1шт.

27

5120761

SPRING,7.7mm OD x 20.5mm L

1шт.

28

20063470

BALL,7.9mm OD

1шт.

29

5117736

LEVER,M14 x 1.5

1шт.

30

5120763

SECTOR

TOOTHED SECTOR

1шт.

31

14454081

O-RING,1.051" ID x 0.07" Width

1шт.

32

5117731

SPOOL

1шт.

33

13420376

SNAP RING,M12, Int

1шт.

34

5122030

SPRING WASHER,5mm ID x 11.7mm OD x 3mm Thk

1шт.

35

5122029

PLUG,M32 x 1.5

1шт.

36

14458081

O-RING,1.112" ID x 0.103" Width

1шт.

37

14457381

O-RING,17.12mm ID x 2.62" Width

6шт.

38

5117732

PIN,10.5mm OD x 15.5mm L

1шт.

39

5115469

SPRING,Compression, 7.7mm OD x 14.5mm L

1шт.

40

14453980

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

41

5117725

PLUG,M27 x 1.5

1шт.

42

4973361

SPRING,Compression, 15.5mm OD x 50.5mm L

1шт.

43

5169834

VALVE

1шт.

44

5117726

WASHER,17.83mm ID x 22.19mm OD x 1.14mm Thk

2шт.

45

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

46

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1шт.

47

5190125

VALVE PRESSURE RELIE

1шт.

48

20063430

BALL,4.76mm OD, Gr 100

1шт.

49

596854

SPRING

1шт.

50

5190541

BUSHING,6.4mm ID x 8mm OD x 3.5mm L

1шт.

51

5148907

SPACER,3mm Thk

1шт.

52

5148905

SPACER,3mm Thk

1шт.
