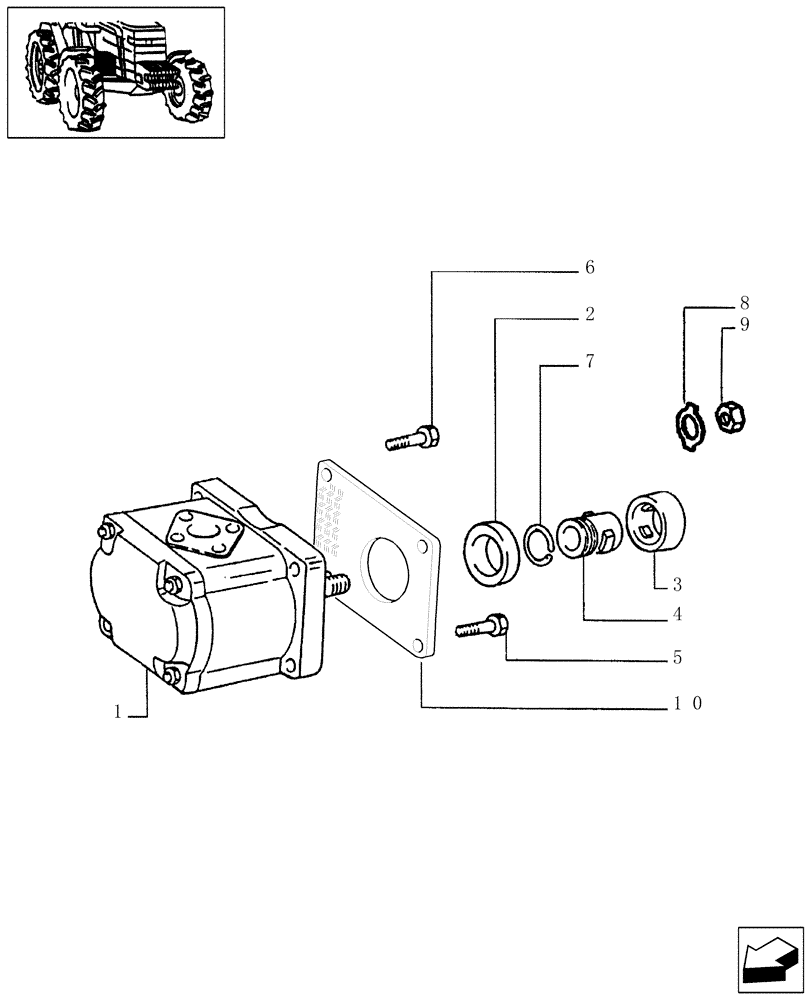

Запчасти Case IH JX95 (1.82.3[01]) - HYDRAULIC PUMP - SCREWS, RINGS AND HUBS (07) - HYDRAULIC SYSTEM

1

5094391

ENGINE OIL PUMP

1шт.

40.1 l/min. (10.8 GPM)

1шт.

84530156R

REMAN-HYD PUMP

JX95 (1/06-); Reman for New P/N 5094391

1шт.

84530156C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

5118568

CENTERING RING

Centering

1шт.

3

5118569

COUPLING

1шт.

4

5118570

HUB

1шт.

5

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

2шт.

6

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

2шт.

7

13398376

SNAP RING,M40, Int

1шт.

8

8273920

LOCK WASHER

1шт.

9

5093733

NUT

1шт.

10

5167989

SEAL,0.8mm Thk

1шт.
