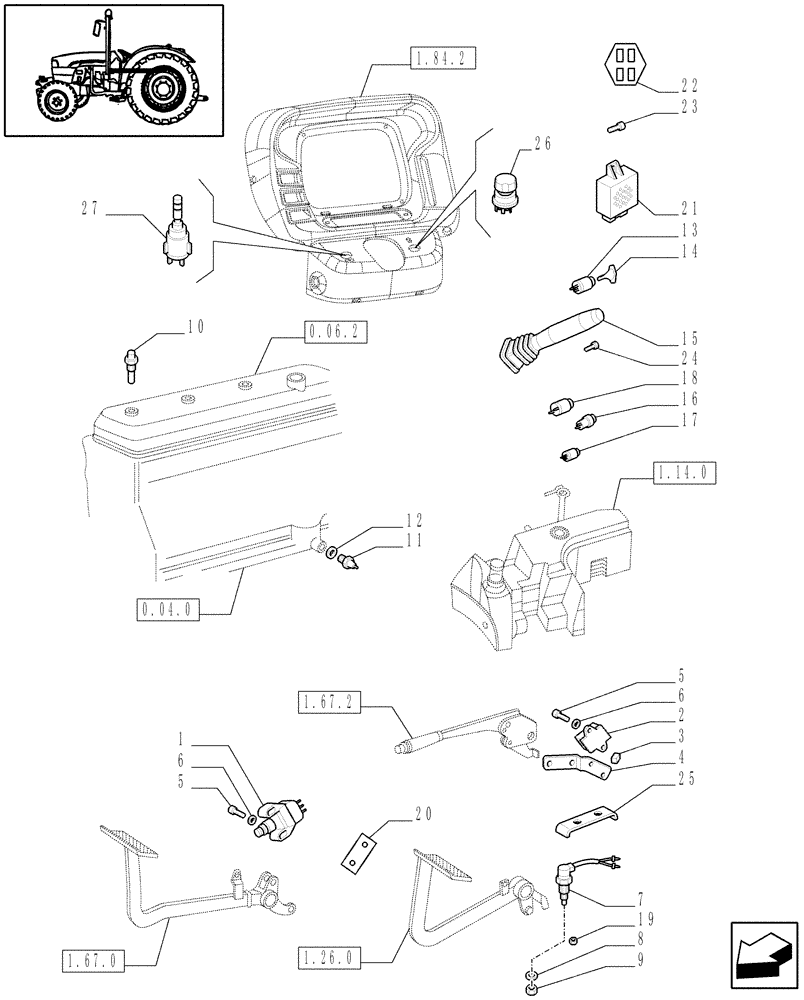

Запчасти Case IH JX95 (1.75.0) - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS

1

5163618

SWITCH

Assy, Switch F/Command Stop Lights

1шт.

2

5093385

PUSH BUTTON SWITCH

Hand Brake Warning

1шт.

3

5086015

CAP

1шт.

4

5090868

BRACKET

1шт.

5

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

8шт.

6

10571379

LOCK WASHER,M4

8шт.

7

5140584

SWITCH

Starter Safety Switch 35A, Serial Range: -C6373

1шт.

7

87660978

NEUTRAL START SWITCH

Starter Safety Switch 35A, Serial Range: D6373-C6433

1шт.

7

84219064

NEUTRAL START SWITCH

Starter Safety Switch 35A, Start Serial: D6433

1шт.

8

12601674

WAVE WASHER,Wave, M15

1шт.

9

10791311

THIN NUT,M14 x 1.5, Cl 04

1шт.

10

5086043

SWITCH,Water Temperature

Water Temperature

1шт.

11

5107603

PRESSURE SWITCH

Engine Oil

1шт.

12

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

13

5129862

IGNITION SWITCH

1шт.

14

47126500

IGNITION KEY

KEY RED

2шт.

15

5089705

SWITCH

Lights, Horn, Directional Signals

1шт.

16

5122659

FLASHER SWITCH

Emergency, HAZARD

1шт.

17

5086006

SWITCH

Thermostarter

1шт.

18

5089488

CIGARETTE LIGHTER

1шт.

19

10794011

NUT,M4, Cl 8

4шт.

20

5128492

COVER PLATE

1шт.

21

5188605

BUZZER,12V, 0.7A

Time-Delay

1шт.

22

5089568

SUPPORT

Switch

1шт.

23

15688501

SELF-TAP SCREW,Pan Hd, M10 x 22mm

3шт.

24

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

4шт.

25

5093339

BRACKET

, Serial Range: -C7007

1шт.

26

5086008

SWITCH

1шт.

27

5086007

SWITCH

1шт.
