(1.74.1) - BATTERY FASTENING - BRACKETS

Запчасти Case IH JX95 (1.74.1) - BATTERY FASTENING - BRACKETS (06) - ELECTRICAL SYSTEMS

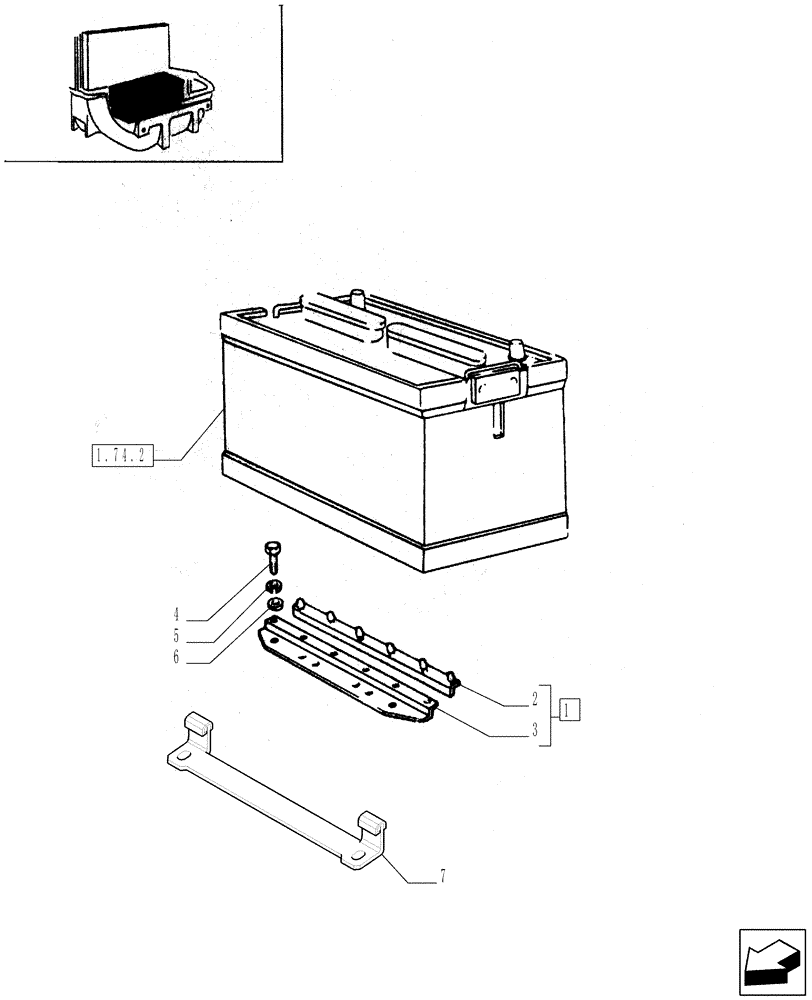

Схема запчастей Case IH JX95 - (1.74.1) - BATTERY FASTENING - BRACKETS (06) - ELECTRICAL SYSTEMS
3
5
2
7
6
1.74.2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5140357

SUPPORT

Assy, Battery

2шт.

2

4975018

PAD

Battery

2шт.

3

5140315

SUPPORT

2шт.

4

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

5

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

7

84313886

BATTERY TRAY

2шт.
