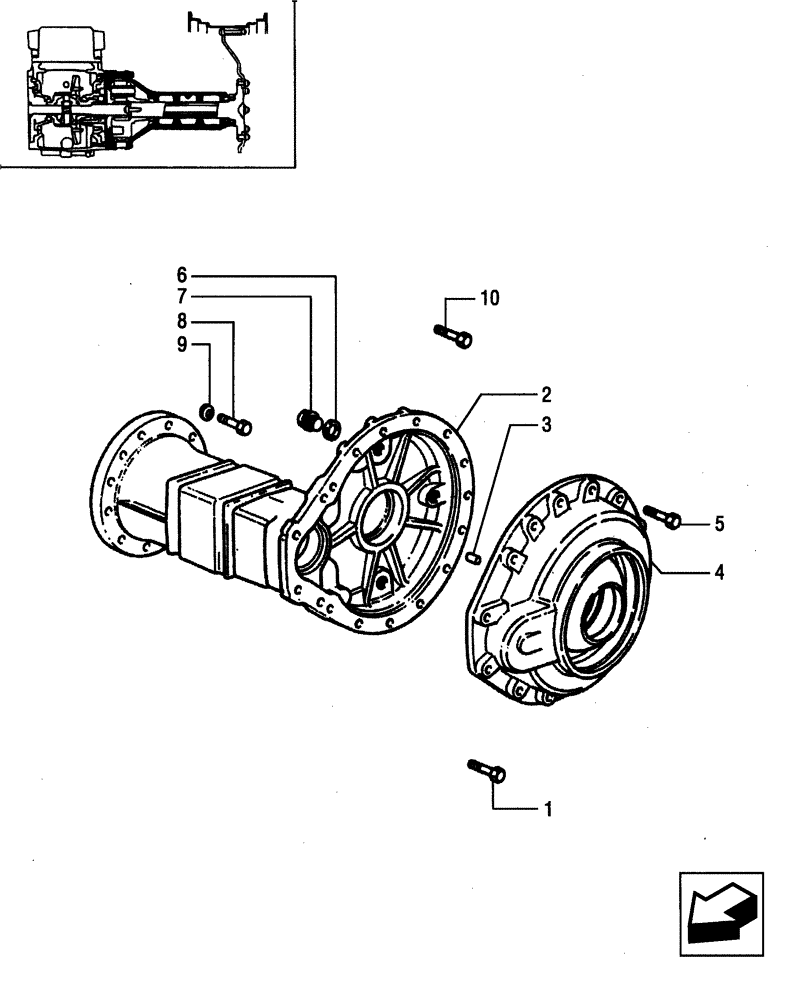

Запчасти Case IH JX95 (1.48.0) - SIDE REDUCER BOX AND COVERS (05) - REAR AXLE

1

15540931

BOLT,Hex, M12 x 1.25 x 55mm, Cl 10.9

2шт.

2

5094115

HOUSING

JX95

2шт.

2

5093948

HOUSING

JX80, JX90

2шт.

2

5093949

HOUSING

JX60, JX70

2шт.

3

10839910

DOWEL,15mm OD x 20mm L

4шт.

4

5089364

COVER

JX95

2шт.

4

5116343

COVER

JX60, JX70

2шт.

4

5140205

COVER

JX80, JX90

2шт.

5

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

JX60, JX70

4шт.

5

11307021

BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd

JX80, JX90, JX95

30шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

6шт.

7

10305171

PLUG,M22 x 1.5 x 21

6шт.

8

15540831

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

16шт.

9

11198679

BELLEVILLE WASHER,13mm ID x 24mm OD x 0.6mm Thk

22шт.

10

15541031

BOLT,Hex, M12 x 1.25 x 60mm, Cl 10.9

5шт.
