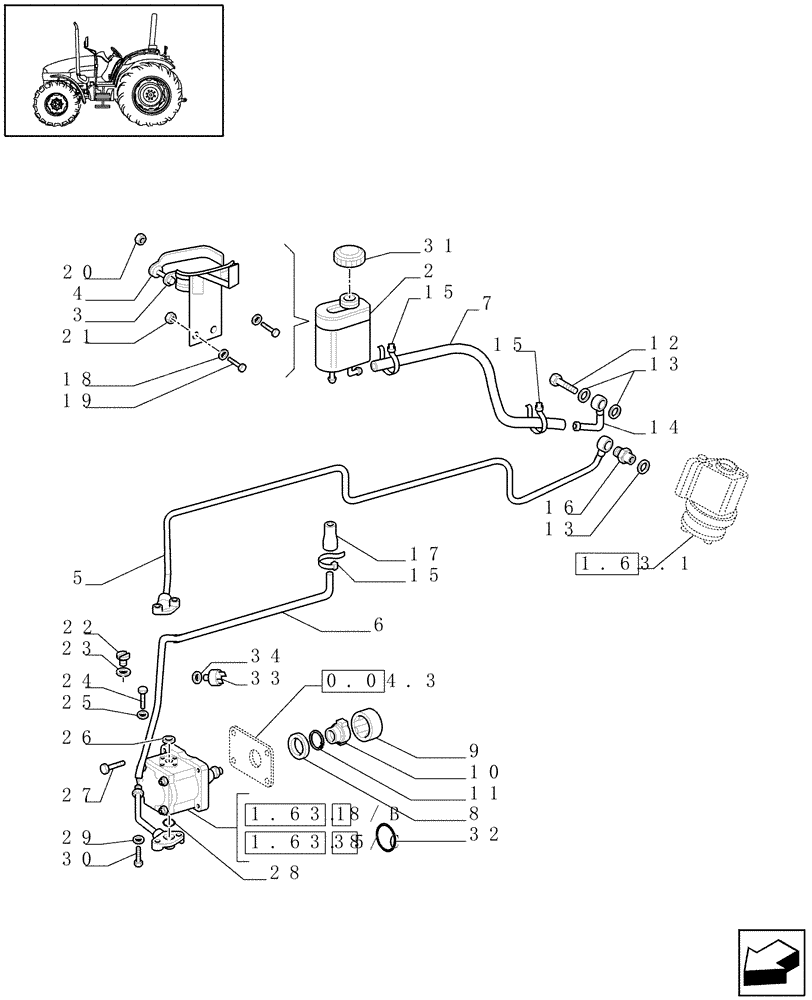

Запчасти Case IH JX95 (1.63.8/01[03]) - POWER STEERING - PIPES AND UNIONS (04) - FRONT AXLE & STEERING

1

5094395

SERVOSTEERING

Steering, Serial Range: -C6661

1шт.

1

84530166R

REMAN-HYD PUMP

JX95 STRADDLE MOUNT TRACTOR, Steering, Serial Range: -C6661 (1/06-), Reman for New PN 5094395

1шт.

1

84530166C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

5087810

RESERVOIR, HYDRAULIC

Power Steering, Incl.31, Serial Range: -C6573

1шт.

2

84264948

RESERVOIR, HYDRAULIC,0.85L

Power Steering, Incl.31, Start Serial: D6573

1шт.

3

5092627

SUPPORT

1шт.

4

5085974

BRACKET

1шт.

5

5097786

PIPE

1шт.

6

5089717

PIPE

1шт.

7

5126303

HYDRAULIC HOSE,16.00 mm ID x 750.00 mm

1шт.

8

5118568

CENTERING RING

Centering

1шт.

9

5118569

COUPLING

1шт.

10

5118570

HUB

1шт.

11

13398376

SNAP RING,M40, Int

1шт.

12

5112983

BANJO BOLT,1/2" GAS x 36mm L

2шт.

13

44019496

SEAL,21.2mm ID x 26mm OD x 2mm Thk

3шт.

14

5091174

PIPE

1шт.

15

5112712

COLLAR,M4.8 x 283

3шт.

16

5091175

FITTING

1шт.

17

5092989

HYDRAULIC HOSE,16.00 mm ID, 20.00 mm ID x 610.00 mm, SAE 100RG,SAE J517

1шт.

18

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

19

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

2шт.

20

15896211

NUT,M6, Cl 8

1шт.

21

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

22

11903114

PLUG,M10 x 1.25 x 11

1шт.

23

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

1шт.

24

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

25

10571579

LOCK WASHER,M6

3шт.

26

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

27

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

4шт.

28

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

29

10569379

LOCK WASHER

M8

2шт.

30

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

31

87749163

PLUG

, Serial Range: -C6573

1шт.

31

84264968

PLUG

, Start Serial: D6573

1шт.

32

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

1шт.

33

5161047

PRESSURE SWITCH

3 Bar, Serial Range: -C6395

1шт.

33

87494632

PRESSURE SWITCH,M12 x 1.5

3 Bar, Start Serial: D6395

1шт.

34

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

35

5179722

HYDRAULIC PUMP

Steering, Start Serial: D6661

1шт.

35

84530166R

REMAN-HYD PUMP

JX95 STRADDLE MOUNT TRACTOR, Steering, Start Serial: D6661 (1/06-), Reman for New PN 5179722

1шт.

55

84530166C

CORE-HYDRAULIC PUMP

Return Number

1шт.
