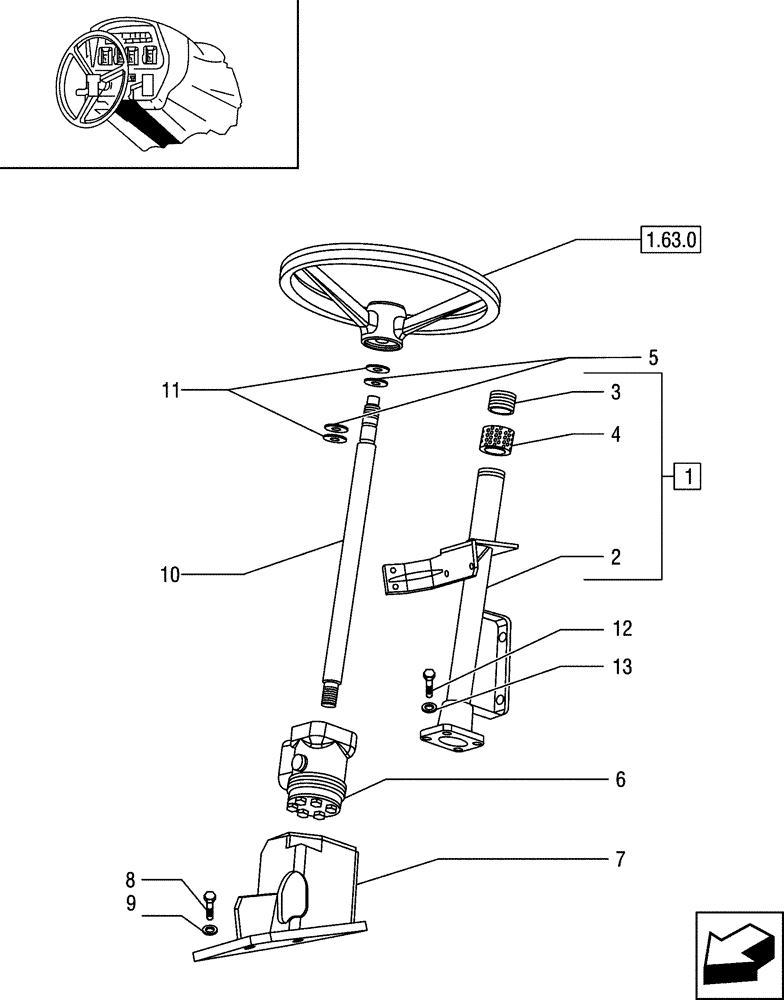

Запчасти Case IH JX95 (1.63.1) - POWER STEERING - SPRAG, SPACER AND SHAFT (04) - FRONT AXLE & STEERING

1

5096690

STEERING COLUMN

1шт.

2

5096346

STEERING COLUMN

1шт.

3

5119347

BUSHING,26.94mm ID x 37mm OD x 22mm L

1шт.

4

5158631

BUSHING,22.6mm ID x 27mm OD x 21.5mm L

1шт.

5

5112755

WASHER

2шт.

6

5094306

HYDRAULIC STEERING

4WD

1шт.

6

5094308

HYDRAULIC STEERING

2WD

1шт.

7

5096349

SUPPORT

1шт.

8

15980521

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

9

10572179

LOCK WASHER,M16

4шт.

10

5096691

STEERING SHAFT

1шт.

11

11067076

SNAP RING,M22, Ext

2шт.

12

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

4шт.

13

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.
