Запчасти Case IH JX95 (1.40.2/12[01]) - VAR - 539, 335539 - FRONT AXLE - POWER STEERING CYLINDER AND PARTS (04) - FRONT AXLE & STEERING

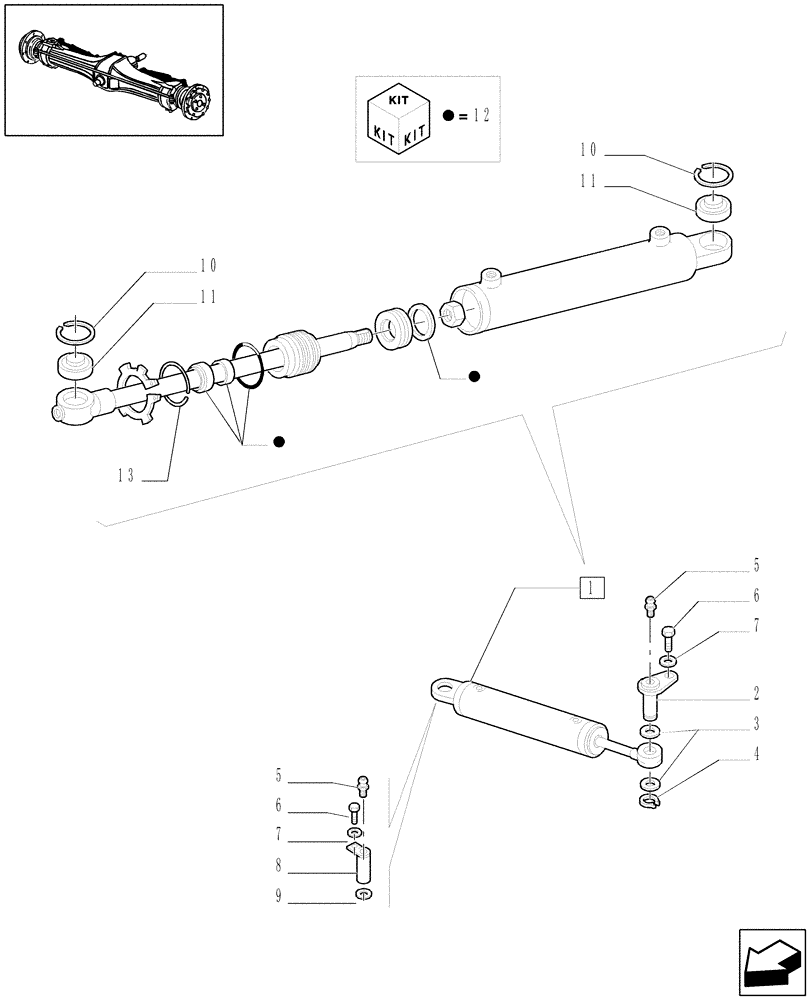

Схема запчастей Case IH JX95 - (1.40.2/12[01]) - VAR - 539, 335539 - FRONT AXLE - POWER STEERING CYLINDER AND PARTS (04) - FRONT AXLE & STEERING
2
12
12
11
7
10
5
5
12
13
6
1
10
12
11
4
3
6
9
8
7

Артикул

Название

Примечание

Количество

1

5164023

STEERING CYLINDER,Double Acting, 22mm Rod, 208mm Stroke

2шт.

5164023R

REMAN-HYD CYLINDER

JX95 STRADDLE MOUNT TRACTOR (1/06-)

2шт.

5164023C

CORE-HYD CYLINDER

Return Number

1шт.

2

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

3

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

4

11066876

SNAP RING,M20, Ext

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

5

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

8

5142048

PIN,19.98mm x 107.00mm

2шт.

9

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

D=20.5 x 28 x 16

2шт.

10

5190903

LOCKING RING

2шт.

11

5190901

BUSHING

2шт.

12

5190916

SEAL KIT

1шт.

13

5190568

LOCKING RING

1шт.

Выбрано товаров: 16
