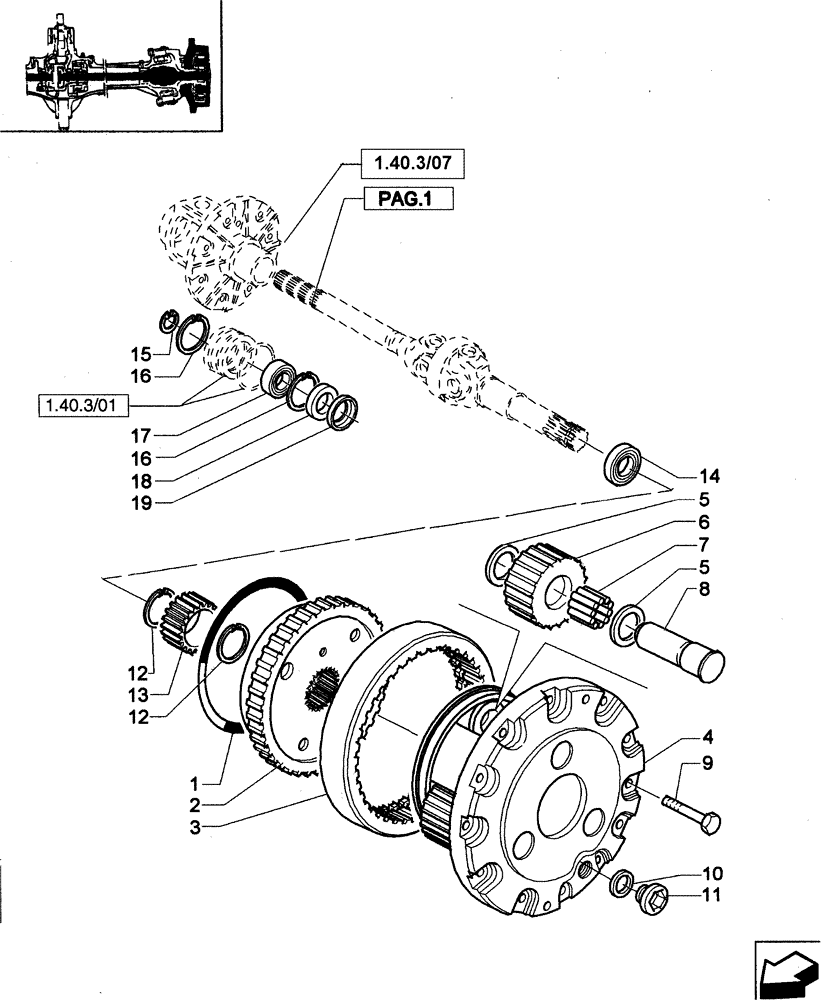

Запчасти Case IH JX95 (1.40.2/10[02]) - VAR - 539, 335539 - FRONT AXLE BOX - EPICYCLIC REDUCTION GEAR (04) - FRONT AXLE & STEERING

1

4997571

CIRCLIP

D=210

2шт.

2

5142047

PLANET CARRIER

2шт.

3

5108749

RING GEAR

2шт.

4

5137724

SUPPORT

2шт.

5

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

D=25x45x0.8

12шт.

6

5108747

PLANETARY GEAR

6шт.

7

5101693

ROLLER BEARING,25.6 mm ID x 35.6 mm OD x 29.8 mm

6шт.

8

4997509

PIN,10mm OD x 21mm L

6шт.

9

14233624

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

24шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

11

10305171

PLUG,M22 x 1.5 x 21

2шт.

12

5140018

SNAP RING,M30, Ext

4шт.

13

5137107

SUN GEAR

2шт.

14

5184118

SEAL,42mm ID x 62mm OD x 21.5mm Thk

2шт.

15

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

16

80370012

SNAP RING

4шт.

17

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

2шт.

18

5136002

SEAL,40mm ID x 62mm OD x 10mm Thk

D=40x62x10-12

2шт.

19

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

2шт.
