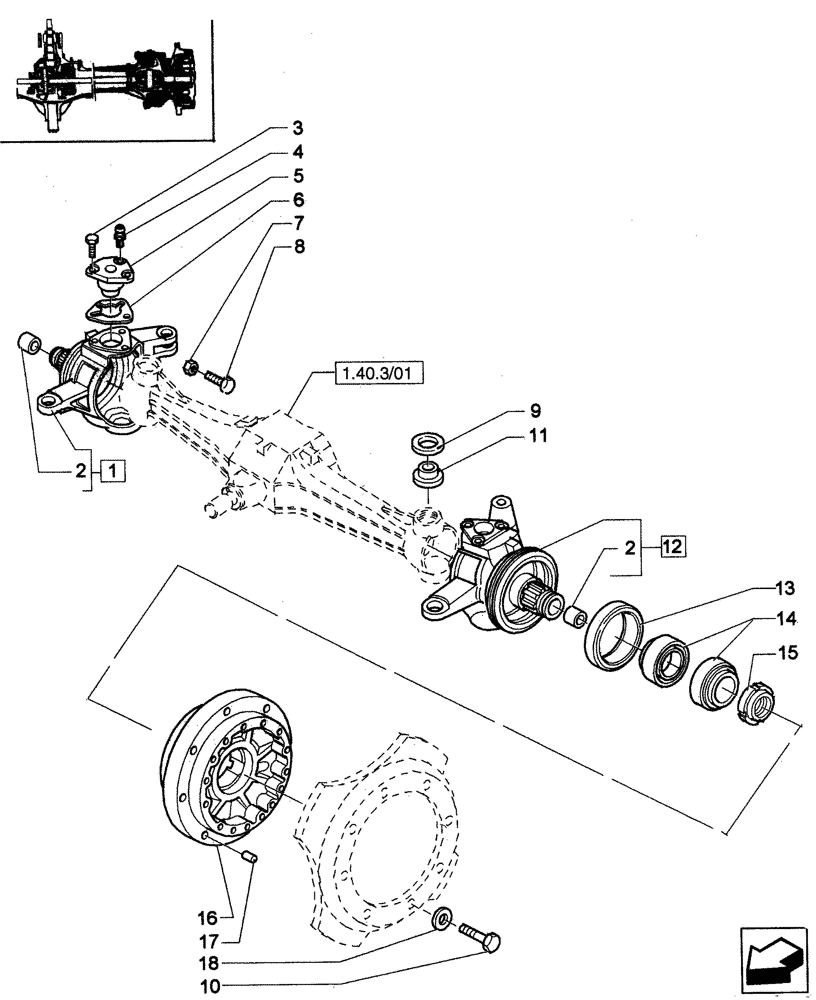

Запчасти Case IH JX95 (1.40.2/02) - VAR - 539, 335539 - FRONT AXLE - STEERING PIVOT PINS (04) - FRONT AXLE & STEERING

1

5171553

KNUCKLE

ASSY. RH

1шт.

2

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

2шт.

3

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

4

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

5

5137239

BALL STUD

BALL PIN

4шт.

6

5087426

SHIM KIT

1шт.

7

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

8

5167638

SCREW

2шт.

9

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

4шт.

10

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

16шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

4шт.

12

5171552

KNUCKLE,LH

LH

1шт.

13

5184116

SEAL

165 x 190 x 15.5-17

2шт.

14

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

4шт.

15

5142020

NUT,Hex, M75 x 2

2шт.

16

5142014

HUB

2шт.

17

4985063

DOWEL,12mm OD x 20mm L

2шт.

18

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.
