Запчасти Case IH JX95 (1.40.0/12[02]) - FRONT AXLE - POWER STEERING CYLINDER AND PIPES (04) - FRONT AXLE & STEERING

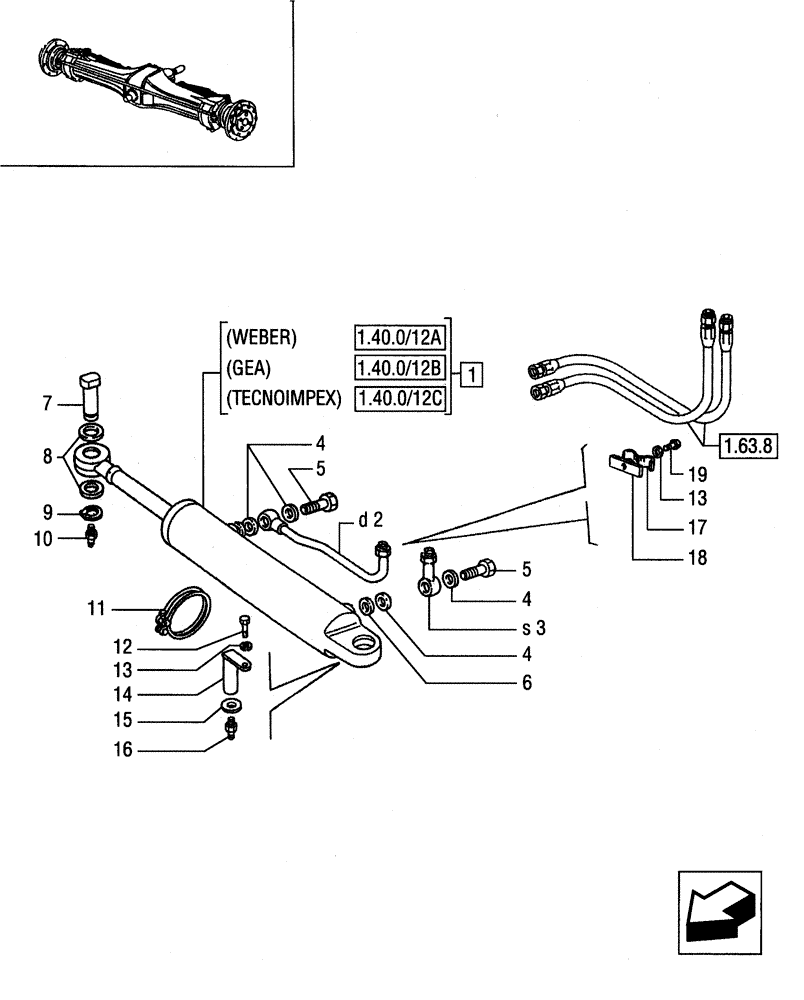

Схема запчастей Case IH JX95 - (1.40.0/12[02]) - FRONT AXLE - POWER STEERING CYLINDER AND PIPES (04) - FRONT AXLE & STEERING
9
10
1.40.0/12a
s 3
8
4
11
1.40.0/12b
19
18
13
5
17
d 2
12
1
14
15
1.63.8
7
16
5
4
4
13
6
1.40.0/12c

Артикул

Название

Примечание

Количество

1

5134221

STEERING CYLINDER,Double Acting, 25mm Rod, 230mm Stroke

384mm

1шт.

2

5142238

HYD TUBE

RH

1шт.

3

5145031

HYD TUBE

LH

1шт.

4

10280060

SEAL,M14.2 x 20 x 1.5

4шт.

5

10184314

BANJO BOLT,M14 x 1.5 x 27mm

3шт.

6

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

1шт.

7

5111572

PIN,24.99mm OD x 76mm L

1шт.

8

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

2шт.

9

11067376

SNAP RING,M25, Ext

1шт.

10

13406914

LUBE NIPPLE

1шт.

11

13000990

COLLAR,60mm - 80mm, Worm Gear

1шт.

12

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

13

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

2шт.

14

5142236

PIN,25mm OD x 107mm L

1шт.

15

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

1шт.

16

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

1шт.

17

4999554

CLAMP,2 Hoses

1шт.

18

5138294

SUPPORT

1шт.

19

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 19
