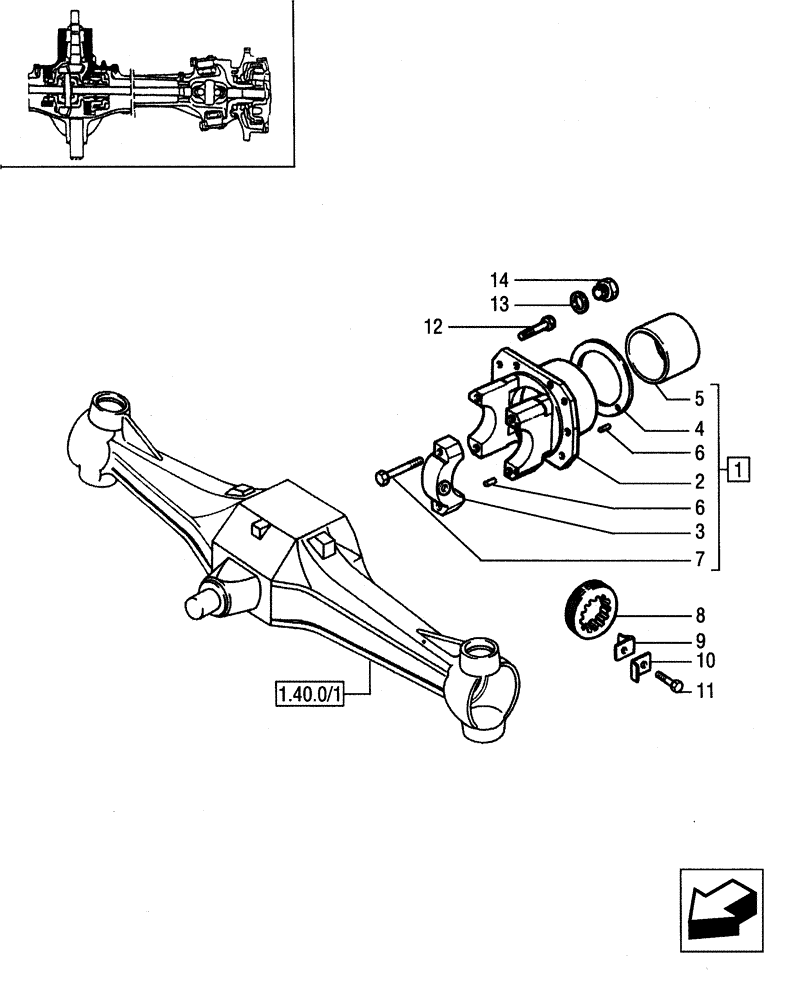

Запчасти Case IH JX95 (1.40.0/05[02]) - FRONT AXLE - SUPPORT (04) - FRONT AXLE & STEERING

1

5153612

CARRIER,Bevel Gear

JX95

1шт.

2

5153611

PLATE

1шт.

3

4996749

SUPPORT

2шт.

4

4996779

RING,99.3mm ID x 128mm OD x 5mm Thk

1шт.

4

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

JX95

1шт.

5

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

6

4966244

PIN,5mm OD x 15mm L

3шт.

7

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

8

4996750

RING NUT,M100 x 2

2шт.

9

4996751

PLATE

2шт.

10

562659

PLATE

2шт.

11

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

12

14274634

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

10шт.

13

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

JX80, JX90

1шт.

14

10305171

PLUG,M22 x 1.5 x 21

JX80, JX90

1шт.
