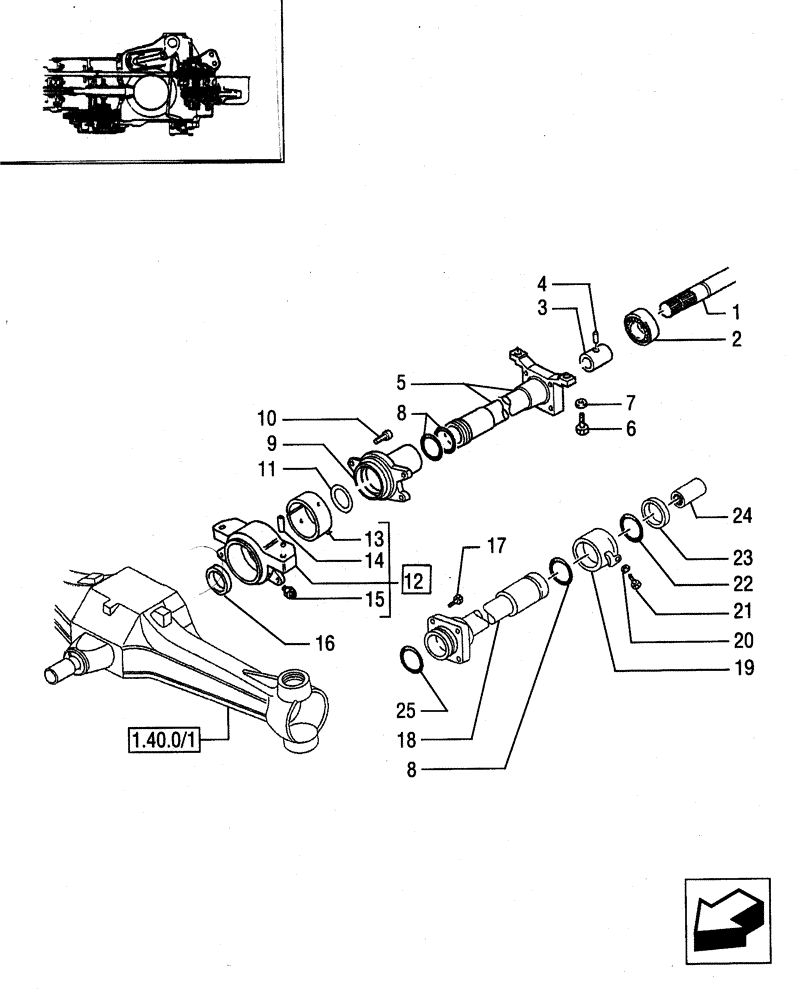

Запчасти Case IH JX95 (1.38.5/01) - VAR - 449 - FRONT AXLE - SLEEVE AND SUPPORT (04) - FRONT AXLE & STEERING

1

5092840

SHAFT

JX95

1шт.

1

5115339

PROPELLER SHAFT

JX80-JX90

1шт.

1

5116691

PROPELLER SHAFT

JX60-JX70

1шт.

2

28996680

BALL BEARING,30mm ID x 72mm OD x 19mm W

1шт.

3

5146936

SPLINED COUPLING

1шт.

4

13905470

COTTER PIN

1шт.

5

5093428

SHIELD

1шт.

5

5146941

SHIELD

JX95

1шт.

6

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

7

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

8

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

3шт.

9

5146937

SLEEVE

1шт.

10

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

11

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

12

5001104

SUPPORT

1шт.

12

5147613

SUPPORT

1шт.

13

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

14

10837710

DOWEL,M10 x 25

4шт.

15

13407211

LUBE NIPPLE,M10 x 1

2шт.

16

5140455

SEALING RING,99mm ID x 115mm OD x 7,5mm Thk

2шт.

17

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

4шт.

18

5146945

SHIELD

1шт.

19

5146948

BUSHING

1шт.

20

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

21

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

22

14460480

O-RING,2.612" ID x 2.818" OD x .103"

2шт.

23

5105989

SEAL,30mm ID x 50mm OD x 10mm Thk

1шт.

24

5199243

SPLINED COUPLING

1шт.

25

14461480

O-RING,4.237" ID x 0.103" Thk

1шт.
