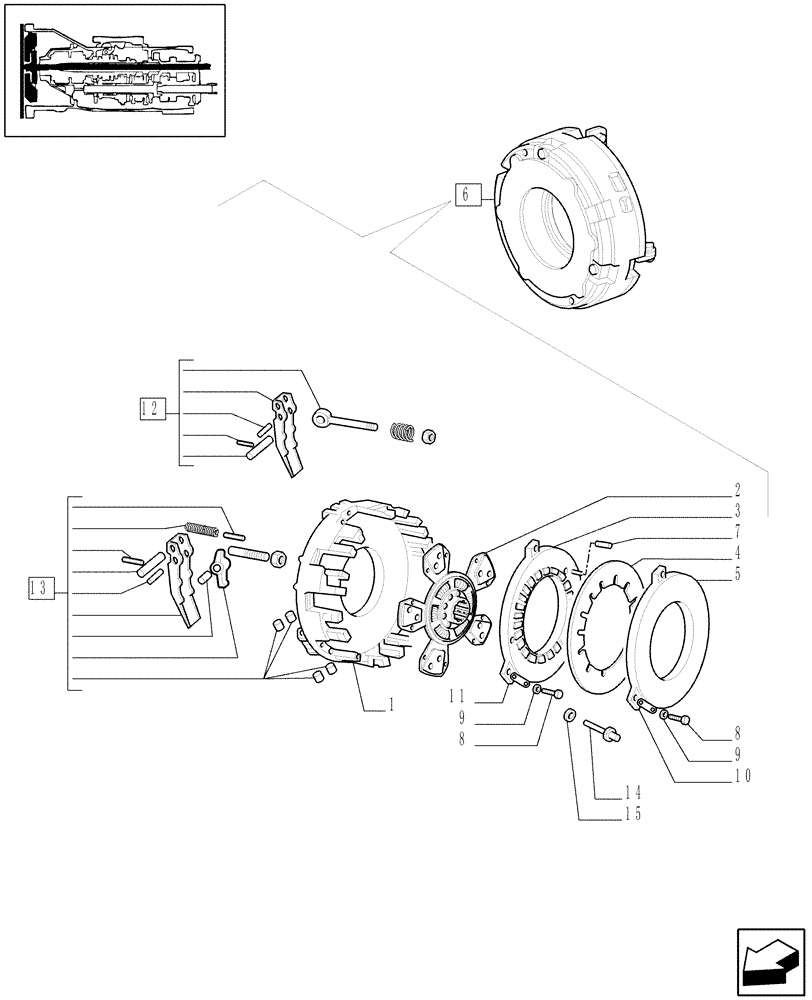

Запчасти Case IH JX95 (1.25.0/ A) - CLUTCH - RELEVANT PARTS (03) - TRANSMISSION

1

25281476

CLUTCH HOUSING

JX60-JX70-JX80-JX90

1шт.

1

5092806

CLUTCH HOUSING

Diameter Centered, JX95

1шт.

1

5092803R

REMAN-CLUTCH PLATE

Reman for New PN 5092806

1шт.

1

5092803C

CORE-CLUTCH PLATE

Return Number

1шт.

1

5094128

CLUTCH HOUSING

Pin Centered, JX95

1шт.

2

5092790

CLUTCH & DISC ASSY,280mm OD

JX60-JX70

1шт.

2

5092790R

REMAN-CLUTCH PLATE

Reman for New PN 5092790

1шт.

2

5092790C

CORE-CLUTCH PLATE

Return Number

1шт.

2

5092794

CLUTCH PLATE,280mm OD

5 PAD. JX80

1шт.

2

5092794R

REMAN-CLUTCH PLATE

Reman for New PN 5092794

1шт.

2

5092794C

CORE-CLUTCH PLATE

Return Number

1шт.

2

5092797

CLUTCH PLATE,283mm OD

6 Pad, JX90

1шт.

2

5092797R

REMAN-CLUTCH PLATE

Reman for New 5092797

1шт.

2

5092797C

CORE-CLUTCH PLATE

Return Number

1шт.

2

5092805

CLUTCH PLATE,310mm OD

JX95

1шт.

2

5092805R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

2

5092805C

CORE-CLUTCH PLATE

Return Number, JX95

1шт.

3

25174761

CLUTCH PLATE

JX60-JX70-JX80-JX90

1шт.

3

25174666

CLUTCH PLATE

JX95

1шт.

4

25174661

BELLEVILLE SPRING

JX60-JX70-JX80-JX90

1шт.

4

25174656

CLUTCH PLATE

JX95

1шт.

5

25174734

CLUTCH PLATE

JX60-JX70-JX80-JX90

1шт.

5

25280501

CLUTCH PLATE

JX95

1шт.

6

5092787

CLUTCH,335mm OD

PTO, JX60, JX70

1шт.

6

5092787R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

6

5092787C

CORE-CLUTCH PLATE

Return Number

1шт.

6

5092792

CLUTCH,335mm OD

PTO, JX80

1шт.

6

5092792R

REMAN-CLUTCH PLATE

Reman for New PN 5092792

1шт.

6

5092792C

CORE-CLUTCH PLATE

Return Number

1шт.

6

5150646R

REMAN-CLUTCH PLATE

Reman for New PN 5092792

1шт.

6

5150646C

CORE-CLUTCH PLATE

Return Number

1шт.

6

5092796

CLUTCH,335mm OD

PTO, JX90

1шт.

6

5092803

CLUTCH & DISC ASSY,360mm OD

JX95

1шт.

6

5092803R

REMAN-CLUTCH PLATE

JX95 Straddle Mount Tractor

1шт.

6

5092803C

CORE-CLUTCH PLATE

Return Number

1шт.

7

25173704

PIN

3шт.

8

25286430

BOLT

3шт.

9

25274715

WASHER

3шт.

10

25221058

PLATE

3шт.

11

25220538

PLATE

3шт.

12

5093021

REPAIR KIT

Release Lever, Small, JX60-JX70-JX80-JX90

1шт.

12

5093019

REPAIR KIT

JX95

1шт.

13

5093020

REPAIR KIT

Release Lever, Large, JX60-JX70-JX80-JX90

1шт.

Kit contains 3 fingers, 3 nuts, 3 pins, 3 screws.

1шт.

13

5093018

REPAIR KIT

JX95

1шт.

14

25276325

RIVET

3шт.

15

25276324

RIVET

3шт.
